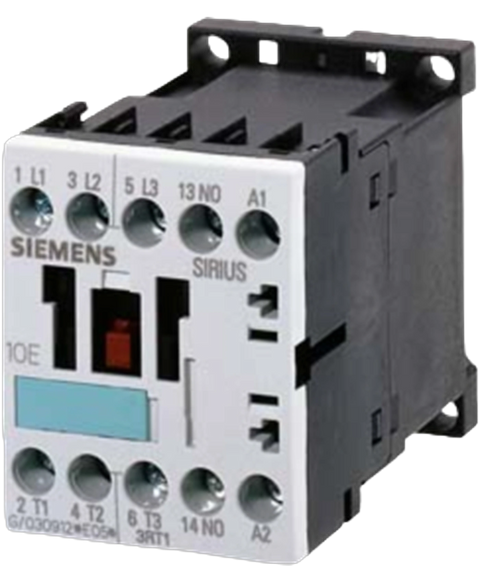

Siemens 3RT1016-1BB41
The Siemens 3RT1016-1BB41 is a contactor designed primarily for reliable switching applications. It operates effectively at a supply voltage of 24V DC and is rated for three poles with a compact size classified as S00.
This Siemens 3RT1016-1BB41 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801449220.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIRIUS |
| Part Number | 3RT1016-1BB41 |
| UPC | 754554410456 |
| Weight | 0.56 lbs (0.26 kg) |
| Series | Breakers |
| Type | Contactor |
| Size | S00 |
| Pollution Degree | Degree 3 |
| IP Rating | IP20 |
| Poles | 3 Poles |
| NO Contacts | 3 Contacts |
| NC Contacts | 0 Contacts |
| Screw Connections | Supported |
| Supply Voltage | 24V DC |
| Operating Temperature | -25 to 60 degrees Celsius |
| Maximum Operating Altitude | 2000m above sea level |
| Maximum Operating Humidity | 80%, non-condensing |
| Maximum Storage Humidity | 80%, non-condensing |
| Brand | Siemens |
