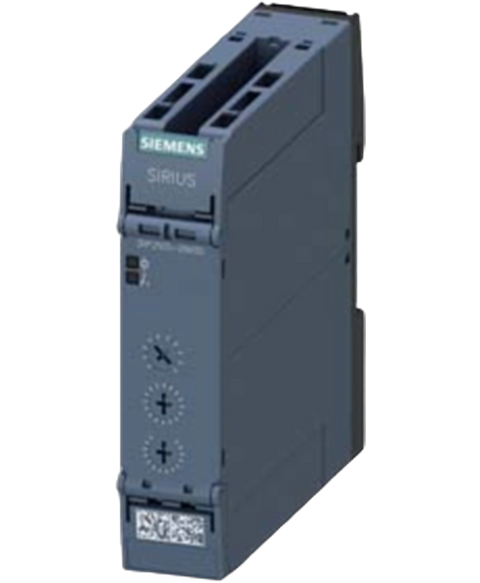

Siemens 3RP25052BW30
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 12-240 V AC,DC at 50,60 Hz AC with LED Spring-type terminal (push-in)
This Siemens 3RP25052BW30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers range and is referenced internally as PartLogic SKU PL27088188654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$234.29
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | timing relay |
| design of the product | 27 functions |
| product type designation | 3RP25 |
| product feature protective coating on printed-circuit board | No |
| relay output | Yes |
| semi-conductor output | No |
| product extension required remote control | No |
| product extension optional remote control | No |
| power loss [W] maximum | 2 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| test voltage for isolation test | 2.5 kV |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 000 V |
| shock resistance according to IEC 60068-2-27 | 11g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz / 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| adjustable time | 0.05 s ... 100 h |
| relative setting accuracy relating to full-scale value | 5 %; +/- |
| thermal current | 5 A |
| minimum ON period | 35 ms |
| recovery time | 250 ms |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 %; +/- |
| influence of the surrounding temperature | 1% in the whole temperature range to the set runtime |
| power supply influence | 1% in the whole voltage range to the set runtime |
| Substance Prohibitance (Date) | 09/12/2014 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 0.159 kg |
| type of voltage of the control supply voltage | AC/DC |
| at 50 Hz | 12 ... 240 V |
| at 60 Hz | 12 ... 240 V |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| control supply voltage 1 at DC | 12 ... 240 V |
| initial value | 0.8 |
| full-scale value | 1.1 |
| at 24 V | 0.3 A0.3 ms3 A1 A |
| at 240 V | 5 A0.5 ms |
| ON-delay | Yes |
| ON-delay/instantaneous contact | Yes |
| passing make contact | Yes |
| passing make contact/instantaneous contact | Yes |
| OFF delay | NoYes |
| flashing symmetrically with interval start/instantaneous | Yes |
| flashing symmetrically with interval start | Yes |
| flashing symmetrically with pulse start/instantaneous | Yes |
| flashing symmetrically with pulse start | Yes |
| flashing asymmetrically with interval start | No |
| flashing asymmetrically with pulse start | No |
| star-delta circuit with delay time | No |
| star-delta circuit | Yes |
| additive ON-delay | Yes |
| passing break contact | Yes |
| passing break contact/instantaneous | Yes |
| OFF delay/instantaneous | Yes |
| pulse delayed | Yes |
| pulse delayed/instantaneous | Yes |
| pulse-shaping | Yes |
| pulse-shaping/instantaneous | Yes |
| additive ON-delay/instantaneous | Yes |
| ON-delay/OFF-delay/instantaneous | Yes |
| retrotriggerable with deactivated control signal/instantaneous contact | Yes |
| retrotriggerable with switched-on control signal | Yes |
| retrotriggerable with switched-on control signal/instantaneous contact | Yes |
| retriggerable with deactivated control signal | Yes |
| design of the control terminal non-floating | Yes |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| material of switching contacts | AgSnO2 |
| delayed switching | 02 |
| instantaneous contact | 0 |
| at 250 V | 3 A0.1 A |
| at 125 V | 0.2 A |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| contact rating of auxiliary contacts according to UL | R300 / B300 |
| switching capacity current with inductive load | 0.01 ... 3 A |
| at the relay outputs switchover delayed/without delay | Yes |
| non-volatile | No |
| EMC emitted interference according to IEC 61812-1 | ambience A (industrial sector) |
| EMC immunity according to IEC 61812-1 | corresponds to degree of severity 3 |
| due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| category according to EN 954-1 | none |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of insulation | Basic insulation |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals (push-in) |
| solid | 1x (0.5 ... 4 mm²)0.5 ... 4 mm²20 ... 12 |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm²)0.5 ... 2.5 mm² |
| finely stranded without core end processing | 0.5 ... 4 mm² |
| for AWG cables solid | 1x (20 ... 12) |
| for AWG cables stranded | 20 ... 12 |
| stranded | 20 ... 12 |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 22.5 mm |
| depth | 90 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| relative humidity during operation | 10 ... 95 % |
