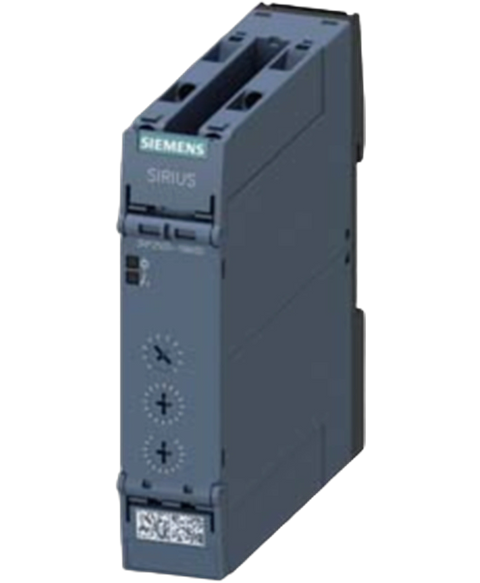

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RP25051BW30
Timing relay, Multifunction 2 change-over contacts, 27 functions 7 time ranges (0.05 s...100 h) 12-240 V AC,DC at 50,60 Hz AC with LED, Screw terminal
This Siemens 3RP25051BW30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers range and is referenced internally as PartLogic SKU PL27088169179.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$220.09
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | timing relay |
| design of the product | 27 functions |
| product type designation | 3RP25 |
| product feature protective coating on printed-circuit board | No |
| relay output | Yes |
| semi-conductor output | No |
| product extension required remote control | No |
| product extension optional remote control | No |
| power loss [W] maximum | 2 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| test voltage for isolation test | 2.5 kV |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 000 V |
| shock resistance according to IEC 60068-2-27 | 11g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz / 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| adjustable time | 0.05 s ... 100 h |
| relative setting accuracy relating to full-scale value | 5 %; +/- |
| thermal current | 5 A |
| minimum ON period | 35 ms |
| recovery time | 250 ms |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 %; +/- |
| influence of the surrounding temperature | 1% in the whole temperature range to the set runtime |
| power supply influence | 1% in the whole voltage range to the set runtime |
| Substance Prohibitance (Date) | 09/12/2014 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 |
| Net Weight | 166 g |
| type of voltage of the control supply voltage | AC/DC |
| at 50 Hz | 12 ... 240 V |
| at 60 Hz | 12 ... 240 V |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| control supply voltage 1 at DC | 12 ... 240 V |
| initial value | 0.8 |
| full-scale value | 1.1 |
| at 24 V | 0.3 A0.3 ms3 A1 A |
| at 240 V | 5 A0.5 ms |
| ON-delay | Yes |
| ON-delay/instantaneous contact | Yes |
| passing make contact | Yes |
| passing make contact/instantaneous contact | Yes |
| OFF delay | NoYes |
| flashing symmetrically with interval start/instantaneous | Yes |
| flashing symmetrically with interval start | Yes |
| flashing symmetrically with pulse start/instantaneous | Yes |
| flashing symmetrically with pulse start | Yes |
| flashing asymmetrically with interval start | No |
| flashing asymmetrically with pulse start | No |
| star-delta circuit with delay time | No |
| star-delta circuit | Yes |
| additive ON-delay | Yes |
| passing break contact | Yes |
| passing break contact/instantaneous | Yes |
| OFF delay/instantaneous | Yes |
| pulse delayed | Yes |
| pulse delayed/instantaneous | Yes |
| pulse-shaping | Yes |
| pulse-shaping/instantaneous | Yes |
| additive ON-delay/instantaneous | Yes |
| ON-delay/OFF-delay/instantaneous | Yes |
| retrotriggerable with deactivated control signal/instantaneous contact | Yes |
| retrotriggerable with switched-on control signal | Yes |
| retrotriggerable with switched-on control signal/instantaneous contact | Yes |
| retriggerable with deactivated control signal | Yes |
| design of the control terminal non-floating | Yes |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| material of switching contacts | AgSnO2 |
| delayed switching | 02 |
| instantaneous contact | 0 |
| at 250 V | 3 A0.1 A |
| at 125 V | 0.2 A |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| contact rating of auxiliary contacts according to UL | R300 / B300 |
| switching capacity current with inductive load | 0.01 ... 3 A |
| at the relay outputs switchover delayed/without delay | Yes |
| non-volatile | No |
| EMC emitted interference according to IEC 61812-1 | ambience A (industrial sector) |
| EMC immunity according to IEC 61812-1 | corresponds to degree of severity 3 |
| due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| category according to EN 954-1 | none |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of insulation | Basic insulation |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 12 |
| finely stranded with core end processing | 1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²)0.5 ... 4 mm² |
| for AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| for AWG cables stranded | 1x (20 ... 12), 2x (20 ... 14) |
| stranded | 20 ... 14 |
| tightening torque | 0.6 ... 0.8 N·m |
| design of the thread of the connection screw | M3 |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 22.5 mm |
| depth | 90 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| relative humidity during operation | 10 ... 95 % |
