Siemens 3RP1525-1BQ30

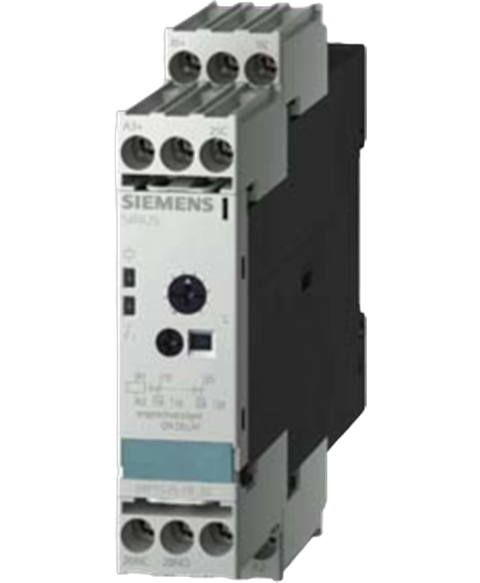

Siemens 3RP1525-1BQ30 on-delay timer relay, 24VDC,127VAC, 2CO contacts.
This Siemens 3RP1525-1BQ30 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers range and is referenced internally as PartLogic SKU PL26805525551.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$454.39
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | timing relay |
| product type designation | 3RP15 |
| product feature protective coating on printed-circuit board | No |
| relay output | Yes |
| semi-conductor output | No |
| product extension required remote control | No |
| product extension optional remote control | No |
| power loss [W] maximum | 2 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| test voltage for isolation test | 2 kV |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 000 V |
| shock resistance according to IEC 60068-2-27 | 11g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz / 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| adjustable time | 0.05 s ... 100 h |
| relative setting accuracy relating to full-scale value | 5 % |
| thermal current | 5 A |
| recovery time | 150 ms |
| reference code according to IEC 81346-2 | K |
| relative repeat accuracy | 1 % |
| influence of the surrounding temperature | ±5 % |
| power supply influence | ±1 % |
| Substance Prohibitance (Date) | 05/28/2009 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 Lead titanium zirconium oxide - 12626-81-2 |
| Net Weight | 0.148 kg |
| type of voltage of the control supply voltage | AC/DC |
| at 50 Hz rated value | 24 V |
| at 60 Hz rated value | 24 V |
| at 50 Hz | 100 ... 127 V |
| at 60 Hz | 100 ... 127 V |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| control supply voltage 1 at DC rated value | 24 V |
| initial value | 0.85 |
| full-scale value | 1.1 |
| ON-delay | Yes |
| ON-delay/instantaneous contact | No |
| passing make contact | No |
| passing make contact/instantaneous contact | No |
| OFF delay | No |
| flashing symmetrically with interval start/instantaneous | No |
| flashing symmetrically with interval start | No |
| flashing symmetrically with pulse start/instantaneous | No |
| flashing symmetrically with pulse start | No |
| flashing asymmetrically with interval start | No |
| flashing asymmetrically with pulse start | No |
| star-delta circuit with delay time | No |
| star-delta circuit | No |
| additive ON-delay | No |
| passing break contact | No |
| passing break contact/instantaneous | No |
| OFF delay/instantaneous | No |
| pulse delayed | No |
| pulse delayed/instantaneous | No |
| pulse-shaping | No |
| pulse-shaping/instantaneous | No |
| additive ON-delay/instantaneous | No |
| ON-delay/OFF-delay/instantaneous | No |
| retrotriggerable with deactivated control signal/instantaneous contact | No |
| retrotriggerable with switched-on control signal | No |
| retrotriggerable with switched-on control signal/instantaneous contact | No |
| retriggerable with deactivated control signal | No |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| material of switching contacts | AgSnO2 |
| delayed switching | 02 |
| instantaneous contact | 0 |
| at 24 V | 3 A1 A |
| at 250 V | 3 A0.1 A |
| at 125 V | 0.2 A |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| contact rating of auxiliary contacts according to UL | R300 / B300 |
| non-volatile | No |
| EMC emitted interference according to IEC 61812-1 | EN 61000-6-4(3) |
| EMC immunity according to IEC 61812-1 | EN 61000-6-2 |
| due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| category according to EN 954-1 | none |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of insulation | Basic insulation |
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)0.5 ... 4 mm²20 ... 14 |
| finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)0.5 ... 2.5 mm² |
| for AWG cables solid | 2x (20 ... 14) |
| for AWG cables stranded | 2x (20 ... 14) |
| stranded | 20 ... 14 |
| tightening torque | 0.8 ... 1.2 N·m |
| design of the thread of the connection screw | M3 |
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 102 mm |
| width | 22.5 mm |
| depth | 91 mm |
| — forwards | 0 mm |
| — backwards | 0 mm |
| — upwards | 0 mm |
| — downwards | 0 mm |
| — at the side | 0 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | -25 ... +60 °C |
| during storage | -40 ... +85 °C |
| during transport | -40 ... +85 °C |
| relative humidity during operation | 10 ... 95 % |
