Siemens 3RN1012-2CB00

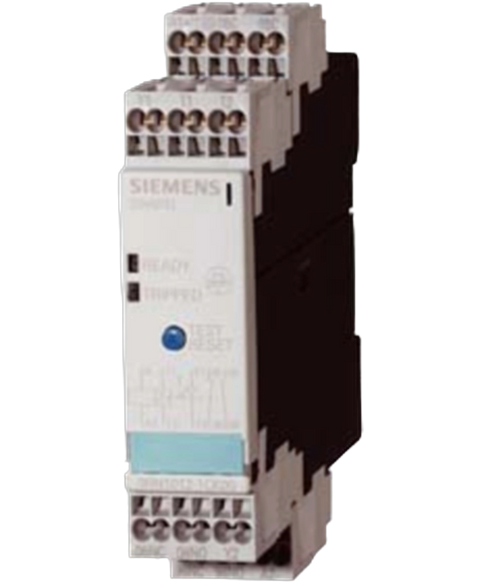

Siemens 3RN1012-2CB00 monitoring relay.
This Siemens 3RN1012-2CB00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Overload relays range and is referenced internally as PartLogic SKU PL26805522602.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| display version LED | Yes |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 |
| Net Weight | 0.136 kg |
| product function reclosing lockout | Yes |
| at 50 Hz rated value | 24 V |
| at 60 Hz rated value | 24 V |
| control supply voltage 1 at DC rated value | 24 V |
| 1 for auxiliary and control circuit rated value | 50 Hz |
| 2 for auxiliary and control circuit rated value | 60 Hz |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| type of voltage | AC/DC |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| fastening method | screw and snap-on mounting |
| height | 103 mm |
| width | 22.5 mm |
| depth | 91 mm |
| ambient temperature during operation | -25 ... +60 °C |
