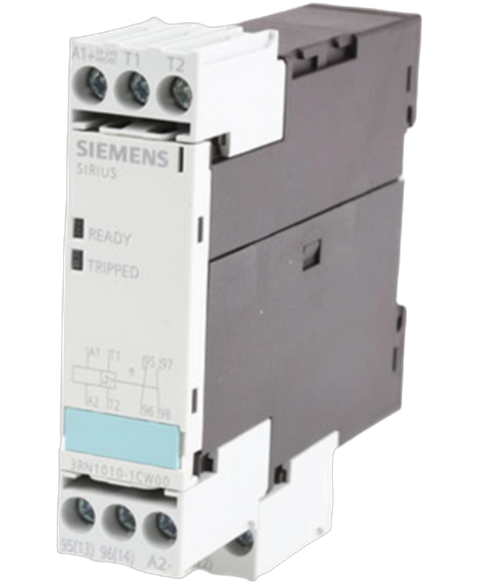

Siemens 3RN1010-1CW00
Siemens 3RN1010-1CW00 thermistor monitoring relay, 24–240VAC,DC.
This Siemens 3RN1010-1CW00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Overload relays range and is referenced internally as PartLogic SKU PL26805615786.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| display version LED | Yes |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (Date) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 Dicyclohexyl phthalate (DCHP) - 84-61-7 |
| Net Weight | 0.14 kg |
| product function reclosing lockout | No |
| at 50 Hz | 24 ... 240 V |
| at 60 Hz | 24 ... 240 V |
| control supply voltage 1 at DC | 24 ... 240 V |
| 1 for auxiliary and control circuit rated value | 50 Hz |
| 2 for auxiliary and control circuit rated value | 60 Hz |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| type of voltage | AC/DC |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| fastening method | screw and snap-on mounting |
| height | 92 mm |
| width | 22.5 mm |
| depth | 91 mm |
| ambient temperature during operation | -25 ... +60 °C |
