Siemens 3RM13022AA04

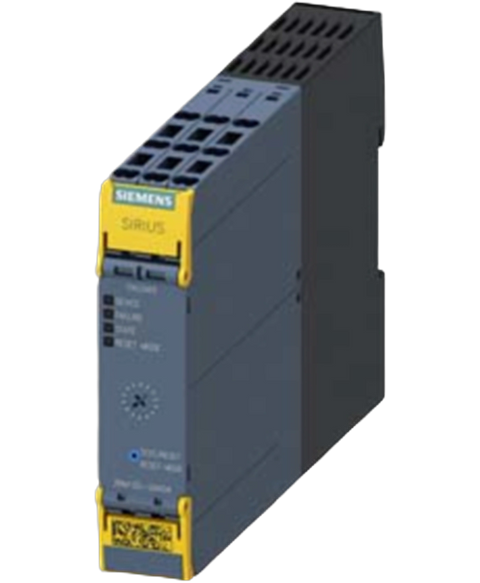

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3RM13022AA04

SKU: PL27088085776
MPN: 3RM13022AA04

Motor starter SIRIUS 3RM1 Reversing starter SAFETY 500 V 0.4 - 2.0 A 24 V DC Push-in connection method

This Siemens 3RM13022AA04 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Solid state contactors range and is referenced internally as PartLogic SKU PL27088085776.

Brand New - 12 Months Warranty
$352.15 (inc. GST)
In Stock
product brand name SIRIUS
product category Motor starter
product designation Failsafe reversing starters
design of the product With electronic overload protection and safety-related disconnection
product type designation 3RM1
equipment version according to IEC 60947-4-2 3
product function fail-safe reversing starter
intrinsic device protection Yes
for power supply reverse polarity protection Yes
suitability for operation device connector 3ZY12 Yes
at AC in hot operating state per pole 0.1 W
without load current share typical 1.37 W
insulation voltage rated value 500 V
overvoltage category III
surge voltage resistance rated value 6 kV
between main and auxiliary circuit 500 V
between control and auxiliary circuit 250 V
shock resistance 6g / 11 ms
vibration resistance 1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz
operating frequency maximum 1 1/s
reference code according to IEC 81346-2 Q
Substance Prohibitance (Date) 03/01/2017
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol - 79-94-7 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 0.301 kg
direct start No
reverse starting Yes
product function short circuit protection No
EMC emitted interference according to IEC 60947-1 class A
EMC immunity according to IEC 60947-1 Class A
due to burst according to IEC 61000-4-4 3 kV / 5 kHz
due to conductor-earth surge according to IEC 61000-4-5 4 kV signal lines 2 kV
due to conductor-conductor surge according to IEC 61000-4-5 2 kV
due to high-frequency radiation according to IEC 61000-4-6 10 V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11 Class B for the domestic, business and commercial environments
field-bound HF interference emission according to CISPR11 Class B for the domestic, business and commercial environments
safe state Load circuit open
function test interval maximum 1 a
diagnostics test interval by internal test function maximum 600 s
stop category according to IEC 60204-1 0
B10d value 2 500 000
failure rate [FIT] at rate of recognizable hazardous failures (λdd) 1 400 FIT
failure rate [FIT] at rate of non-recognizable hazardous failures (λdu) 16 FIT
average diagnostic coverage level (DCavg) 99 %
MTTFd 75 a
Safety Integrity Level (SIL) according to IEC 62061 SIL 3
PFHD with high demand rate according to IEC 62061 2E-8 1/h
performance level (PL) according to ISO 13849-1 PL e
according to IEC 61508 3
safety device type according to IEC 61508-2 Type B
PFDavg with low demand rate according to IEC 61508 1.75E-5
Safe failure fraction (SFF) 99.4 %
hardware fault tolerance according to IEC 61508 1
T1 value for proof test interval or service life according to IEC 61508 20 a
protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe
Safety Integrity Level (SIL) according to IEC 61508 relating to ATEX SIL 2
PFHD with high demand rate according to IEC 61508 relating to ATEX 5E-8 1/h
PFDavg with low demand rate according to IEC 61508 relating to ATEX 0.0005
hardware fault tolerance according to IEC 61508 relating to ATEX 0
T1 value for proof test interval or service life according to IEC 61508 relating to ATEX 3 a
certificate of suitability according to ATEX directive 2014/34/EU BVS 12 ATEX F 002 X
type of protection according to ATEX directive 2014/34/EU II (2)G [Ex e] [Ex d] [Ex px], II (2)D [Ex t] [Ex p], I (M2) [Ex d]
number of poles for main current circuit 3
design of the switching contact Hybrid
adjustable current response value current of the current-dependent overload release 0.4 ... 2 A
minimum load [%] 20 %; from set rated current
type of the motor protection solid-state
operating voltage rated value 48 ... 500 V
relative symmetrical tolerance of the operating voltage 10 %
operating frequency 1 rated value 50 Hz
operating frequency 2 rated value 60 Hz
relative symmetrical tolerance of the operating frequency 10 %
at AC at 400 V rated value 2 A
at AC-3 at 400 V rated value 2 A
at AC-53a at 400 V at ambient temperature 40 °C rated value 2 A
ampacity when starting maximum 16 A
operating power for 3-phase motors at 400 V at 50 Hz 0.09 ... 0.75 kW
input voltage at digital input at DC rated value 24 V
for signal <1> at DC 8 mA
with signal <0> at DC 1 mA
number of CO contacts for auxiliary contacts 1
operational current of auxiliary contacts at AC-15 at 230 V maximum 3 A
operational current of auxiliary contacts at DC-13 at 24 V maximum 1 A
type of voltage of the control supply voltage DC
control supply voltage at DC rated value 19.2 ... 30 V
relative negative tolerance of the control supply voltage at DC 20 %
relative positive tolerance of the control supply voltage at DC 25 %
control supply voltage 1 at DC rated value 24 V
initial value 0.8
full-scale value 1.25
in standby mode of operation 13 mA
during operation 57 mA-25 ... +60 °C
at 24 V 0.28 A; values at 25 °C85 ms
at DC at 24 V 300 mA80 ms
at DC at 24 V at switching on of motor 140 mA80 ms
— with bypass circuit 0.35 W1.37 W
ON-delay time 65 ... 76 ms
OFF-delay time 30 ... 43 ms
at 40 °C rated value 2 A
at 50 °C rated value 2 A
at 55 °C rated value 2 A
at 60 °C rated value 2 A
mounting position vertical, horizontal, standing (observe derating)
fastening method screw and snap-on mounting onto 35 mm DIN rail
height 100 mm
width 22.5 mm
depth 141.6 mm
— forwards 0 mm
— backwards 0 mm
— upwards 50 mm
— downwards 50 mm
— at the side 0 mm3.5 mm
installation altitude at height above sea level maximum 4 000 m
during storage -40 ... +70 °C
during transport -40 ... +70 °C
environmental category during operation according to IEC 60721 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation 10 ... 95 %
air pressure according to SN 31205 900 ... 1 060 hPa
PROFINET IO protocol No
PROFIsafe protocol No
product function bus communication No
protocol is supported AS-Interface protocol No
type of electrical connection spring-loaded terminals (push-in) for main circuit, spring-loaded terminals (push-in) for control circuit
for main current circuit spring-loaded terminals (push-in)
for auxiliary and control circuit spring-loaded terminals (push-in)
wire length for motor unshielded maximum 100 m
solid 1x (0.5 ... 4 mm²)
finely stranded with core end processing 1x (0.5 ... 2.5 mm²)0.5 ... 2.5 mm²0.5 ... 1 mm²
finely stranded without core end processing 1x (0.5 ... 4 mm²)0.5 ... 4 mm²0.5 ... 1.5 mm²
solid or stranded 0.5 ... 4 mm²0.5 ... 1.5 mm²
— solid 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
— finely stranded with core end processing 1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)
— finely stranded without core end processing 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)
for AWG cables for auxiliary contacts 1x (20 ... 16), 2x (20 ... 16)
AWG number as coded connectable conductor cross section for main contacts 20 ... 12
AWG number as coded connectable conductor cross section for auxiliary contacts 20 ... 16
— at 230 V rated value 0.125 hp
— at 200/208 V rated value 0.333 hp
— at 220/230 V rated value 0.333 hp
— at 460/480 V rated value 0.75 hp
operational current at AC at 480 V according to UL 508 2 A
