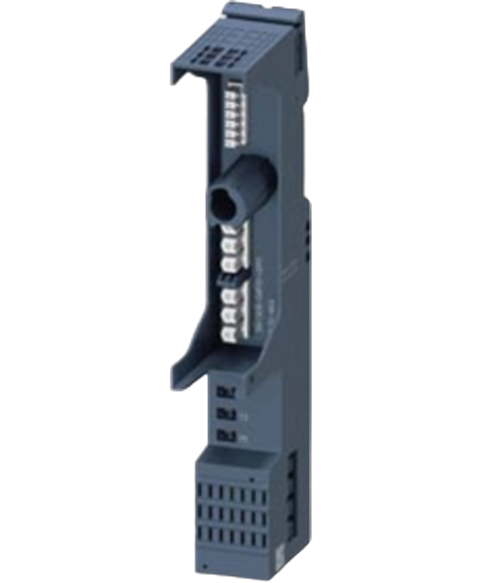

Siemens 3RK19080AP000DP0
BaseUnit for ET 200SP motor starters without infeed
This Siemens 3RK19080AP000DP0 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters > Accessories range and is referenced internally as PartLogic SKU PL27088080091.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMATIC |
| product category | Accessories |
| product designation | BaseUnit |
| design of the product | Without feed in |
| product type designation | ET 200SP |
| product description | for e-starters and motor starters |
| insulation voltage rated value | 500 V |
| degree of pollution | 2 |
| surge voltage resistance rated value | 6 kV |
| between main and auxiliary circuit | 500 V |
| shock resistance | 6g / 11 ms |
| vibration resistance | 15 mm to 6 Hz; 2g to 500 Hz |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 04/15/2016 |
| SVHC substance name | Lead monoxide (lead oxide) - 1317-36-8 |
| Net Weight | 0.217 kg |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe |
| number of poles for main current circuit | 3 |
| type of voltage of the operating voltage | AC |
| operating voltage rated value maximum | 500 V |
| operational current at AC at 400 V rated value | 32 A; Derating, see Manual |
| number of digital inputs | 0 |
| type of voltage of the supply voltage | DC |
| supply voltage 1 at DC rated value | 24 V |
| minimum permissible | 20.4 V |
| maximum permissible | 28.8 V |
| ampacity maximum | 7 A |
| mounting position | vertical, horizontal |
| fastening method | DIN rail |
| height | 215 mm |
| width | 30 mm |
| depth | 75 mm |
| upwards | 50 mm |
| downwards | 50 mm |
| installation altitude at height above sea level maximum | 4 000 m |
| during operation | -25 ... +60 °C; For derating see manual |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| environmental category during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices) |
| relative humidity during operation | 10 ... 95 % |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
| for main current circuit | spring-loaded terminals (push-in) |
| for auxiliary and control circuit | spring-loaded terminals (push-in) |
| type of connecting terminal | Push-in terminal |
| solid | 1x 0,5 ... 2,5 mm² |
| finely stranded without core end processing | 1x 0,5 ... 2,5 mm² |
| finely stranded with core end processing | 1x 0,5 ... 2,5 mm² |
| type of connectable conductor cross-sections for AWG cables for load-side outgoing feeder | 1x 20 ... 12 |
| shape of the screwdriver tip | Slot |
| size of the screwdriver tip | Standard screwdriver 0.6 mm x 3.5 mm |
