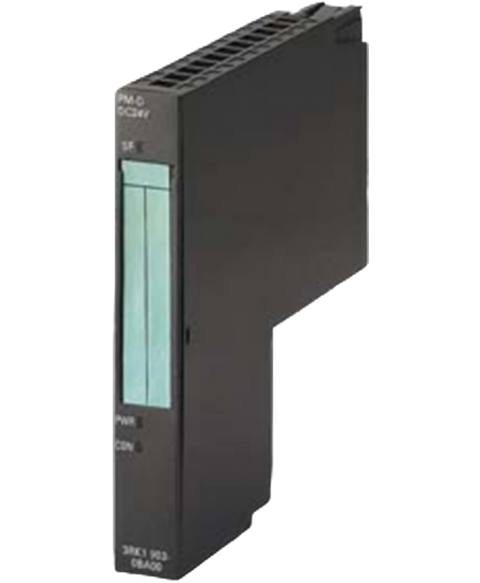

Siemens 3RK19030BA00
PM-D FOR ET 200S POWER MODULE FOR STARTER
This Siemens 3RK19030BA00 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters > Accessories range and is referenced internally as PartLogic SKU PL27088058927.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIMATIC |
| product type designation | ET 200S |
| shock resistance | 5g / 11 ms |
| vibration resistance | 2g |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 |
| Net Weight | 0.071 kg |
| EMC emitted interference according to IEC 60947-1 | CISPR11, ambience A (industrial sector) |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3, ambience A (industrial sector) |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV (U > 24 V DC) |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV (U > 24 V DC) |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe |
| operating voltage rated value | 24 ... 24 V |
| digital inputs parameterizable | No |
| digital outputs parameterizable | No |
| number of digital inputs | 0 |
| type of voltage of the supply voltage | DC |
| supply voltage 1 at DC | 24 ... 24 V |
| minimum permissible | 20.4 V |
| maximum permissible | 28.8 V |
| type of voltage of the control supply voltage | DC |
| control supply voltage 1 at DC | 24 ... 24 V |
| mounting position | vertical, horizontal |
| fastening method | pluggable on terminal module |
| height | 196.5 mm |
| width | 15 mm |
| depth | 95 mm |
| installation altitude at height above sea level maximum | 2 000 m |
| during operation | 0 ... 60 °C |
| during storage | -40 ... +70 °C |
| during transport | -40 ... +70 °C |
| relative humidity during operation | 5 ... 95 % |
