Siemens 3RK13010CB101AB4

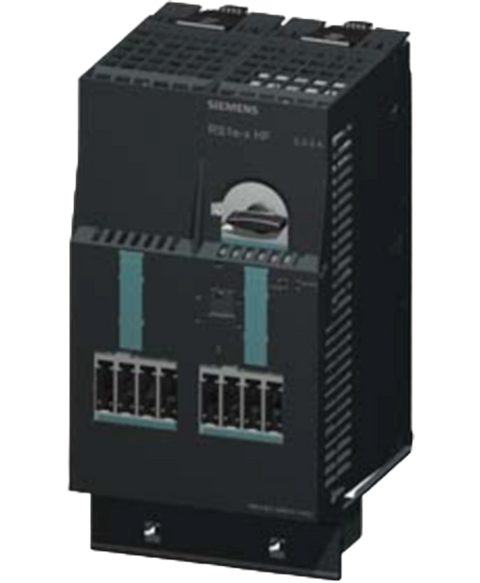

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3RK13010CB101AB4

SKU: PL27087826616
MPN: 3RK13010CB101AB4

RS1E-X FOR ET200S HIGH FEATURE REVERSING STARTER SETTING RANGE 2.4...16A MECHANICAL SWITCHING ELECTRONIC PROTECTION AC-3,TO 7.5KW,400V EXPANDABLE FOR BRAKE CONTROL MODULE 2DI MODULE 2DI MODULE MOTORSTARTER ES SIGNAL FROM CIRCUIT-BREAKER PARAMETERIZABLE DPV 1 CAPABLE PROFIENERGY CAPABLE ON PN

This Siemens 3RK13010CB101AB4 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters range and is referenced internally as PartLogic SKU PL27087826616.

Brand New - 12 Months Warranty
$3,518.75 (inc. GST)
In Stock

Datasheet

product brand name SIMATIC
product designation Motor starters
design of the product reversing starter
product type designation ET 200S
product function on-site operation Yes
at AC in hot operating state 11 W
at AC in hot operating state per pole 3.67 W
without load current share typical 5.28 W
insulation voltage rated value 500 V
degree of pollution 3 at 400 V, 2 at 500 V according to IEC60664 (IEC61131)
surge voltage resistance rated value 6 kV
maximum permissible voltage for protective separation between main and auxiliary circuit 400 V
shock resistance 5g / 11 ms
vibration resistance 2g
mechanical service life (operating cycles) of the main contacts typical 100 000
type of coordination 2
reference code according to IEC 81346-2 Q
Substance Prohibitance (Date) 07/01/2006
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 Lead titanium zirconium oxide - 12626-81-2 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 2.4 kg
direct start No
reverse starting Yes
product component motor brake output Yes
brake control with 230 V AC No
brake control with 24 V DC No
brake control with 180 V DC No
brake control with 500 V DC No
product extension braking module for brake control Yes
product function short circuit protection Yes
design of short-circuit protection circuit-breakers
at 400 V rated value 50 kA
EMC emitted interference according to IEC 60947-1 CISPR11, ambience A (industrial sector)
EMC immunity according to IEC 60947-1 corresponds to degree of severity 3, ambience A (industrial sector)
due to burst according to IEC 61000-4-4 2 kV on voltage supply, inputs and outputs
due to conductor-earth surge according to IEC 61000-4-5 2 kV (U > 24 V DC)
due to conductor-conductor surge according to IEC 61000-4-5 1 kV (U > 24 V DC)
field-based interference according to IEC 61000-4-3 80 MHz ... 1 GHz 10 V/m, 1.4 GHz ...2 Hz 3 V/m, 2 GHz ... 2.7 GHz 1 V/m
with low demand rate according to SN 31920 50 %
with high demand rate according to SN 31920 75 %
B10 value with high demand rate according to SN 31920 1 000 000
failure rate [FIT] with low demand rate according to SN 31920 100 FIT
T1 value for proof test interval or service life according to IEC 61508 20 a
protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe
number of poles for main current circuit 3
design of the switching contact electromechanical
adjustable current response value current of the current-dependent overload release 2.4 ... 16 A
type of the motor protection solid-state
operating voltage rated value 200 ... 400 V
operating frequency 1 rated value 50 Hz
operating frequency 2 rated value 60 Hz
relative positive tolerance of the operating frequency 10 %
relative negative tolerance of the operating frequency 10 %
operating range relative to the operating voltage at AC at 50 Hz 200 ... 440 V
at AC-3 at 400 V rated value 16 A
operating power at AC-3 at 400 V rated value 7.5 kW
operating power for 3-phase motors at 400 V at 50 Hz 1.1 ... 7.5 kW
digital inputs parameterizable Yes
digital outputs parameterizable No
number of digital inputs 2
for digital output signals 0
for digital input signals 0
type of voltage of the supply voltage DC
supply voltage 1 at DC 24 ... 24 V
minimum permissible 20.4 V
maximum permissible 28.8 V
type of voltage of the control supply voltage DC
control supply voltage at DC rated value 20.4 ... 28.8 V
control supply voltage 1 at DC rated value 20.4 ... 28.8 V
control supply voltage 1 at DC 24 ... 24 V
mounting position vertical, horizontal
fastening method pluggable on terminal module
height 290 mm
width 130 mm
depth 150 mm
installation altitude at height above sea level maximum 2 000 m
during operation 0 ... 60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
relative humidity during operation 5 ... 95 %
PROFIBUS DP protocol Yes
PROFINET protocol Yes
design of the interface PROFINET protocol Yes
product function bus communication Yes
protocol is supported AS-Interface protocol No
supports PROFIenergy measured values Yes
supports PROFIenergy shutdown Yes
of the inputs 2 byte
of the outputs 2 byte
of the communication interface via backplane bus
for communication transmission via backplane bus
type of electrical connection for main current circuit screw-type terminals
1 for digital input signals using control module
2 for digital input signals using control module
at the manufacturer-specific device interface plug
for main energy infeed screw-type terminals
for load-side outgoing feeder Screw-type terminals
for main energy transmission via energy bus
for supply voltage line-side via backplane bus
for supply voltage transmission via backplane bus
operating voltage at AC at 60 Hz according to CSA and UL rated value 600 V
