Siemens 3RH69111HA22

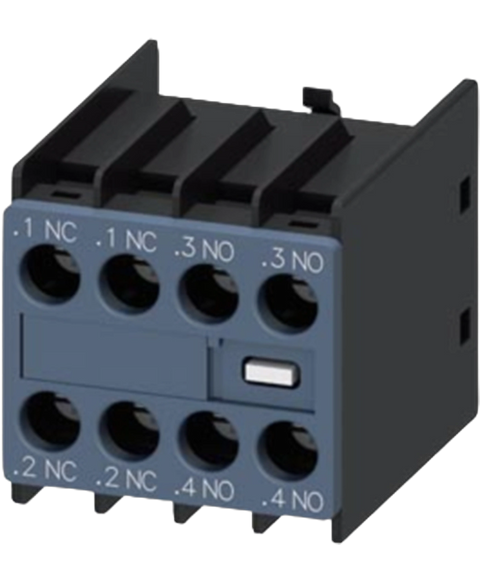

AUX. switch block , 2 NO + 2 NC cond. paths:1NC, 1 NC, 1 NO, 1 NO, for motor contactors and contactor relays, size S00 and S0, screw terminal
This Siemens 3RH69111HA22 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Accessories range and is referenced internally as PartLogic SKU PL27087801053.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product category | Auxiliary switch |
| product designation | auxiliary switch |
| suitability for use | Contactor relay and power contactor |
| size of contactor | S00 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front | IP20 |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 200 000 |
| Substance Prohibitance (Date) | 05/01/2012 |
| Net Weight | 0.056 kg |
| instantaneous contact | 2 |
| lagging switching | 0 |
| leading contact | 0 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| operational current at AC-15 at 690 V rated value | 1 A |
| at 24 V | 10 A6 A |
| at 230 V | 10 A6 A |
| at 125 V | 6 A0.9 A |
| at 250 V | 6 A0.3 A |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| at 400 V | 3 A |
| at 110 V | 3 A1 A |
| at 220 V | 1 A0.3 A |
| at 24 V rated value | 10 A |
| at 60 V rated value | 10 A3.5 A4.7 A |
| at 110 V rated value | 4 A10 A1.3 A3 A |
| at 220 V rated value | 2 A3.6 A0.9 A1.2 A |
| at 440 V rated value | 1.3 A2.5 A0.2 A0.5 A |
| at 600 V rated value | 0.65 A1.8 A0.1 A0.26 A |
| at 48 V | 2 A |
| at 60 V | 2 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| mirror contact according to IEC 60947-4-1 | Yes |
| positively driven operation according to IEC 60947-5-1 | Yes |
| fastening method | snap-on mounting |
| height | 37.5 mm |
| width | 36 mm |
| depth | 43.7 mm |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| solid or stranded | 0.5 ... 2.5 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
