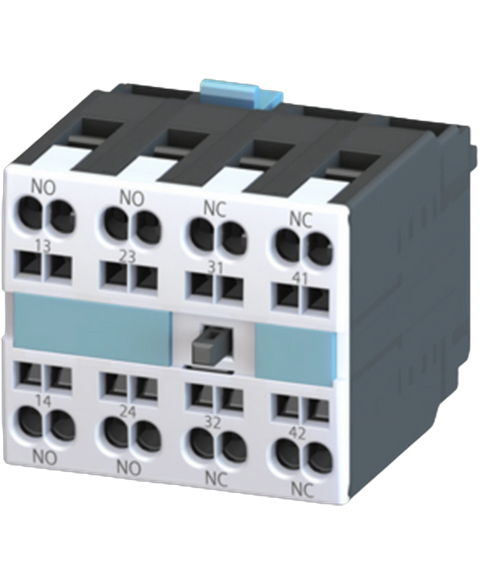

Siemens 3RH19212FA22
Auxiliary switch block, 2 NO + 2 NC, EN 50005 Spring-type, Size S0 ... S12 for contactor relays and motor contactors
This Siemens 3RH19212FA22 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Accessories range and is referenced internally as PartLogic SKU PL27087734286.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SIRIUS |
| product category | Auxiliary switch |
| product designation | auxiliary switch |
| design of the product | for snapping onto the front |
| product type designation | 3RH19 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front | IP20 |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 200 000 |
| Substance Prohibitance (Date) | 07/01/2006 |
| Net Weight | 0.06 kg |
| instantaneous contact | 2 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| operational current at AC-15 at 690 V rated value | 1 A |
| at 24 V | 10 A6 A |
| at 230 V | 10 A6 A |
| at 125 V | 6 A0.9 A |
| at 250 V | 6 A0.3 A |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| at 400 V | 3 A |
| at 110 V | 3 A1 A |
| at 220 V | 1 A0.3 A |
| at 24 V rated value | 10 A |
| at 60 V rated value | 10 A3.5 A4.7 A |
| at 110 V rated value | 4 A10 A1.3 A3 A |
| at 220 V rated value | 2 A3.6 A0.9 A1.2 A |
| at 440 V rated value | 1.3 A2.5 A0.2 A0.5 A |
| at 600 V rated value | 0.65 A1.8 A0.1 A0.26 A |
| at 48 V | 2 A |
| at 60 V | 2 A |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| mirror contact according to IEC 60947-4-1 | Yes; with 3RT1 |
| positively driven operation according to IEC 60947-5-1 | No |
| fastening method | snap-on mounting |
| height | 38 mm |
| width | 44 mm |
| depth | 51 mm |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| solid or stranded | 0.5 ... 2.5 mm² |
| finely stranded with core end processing | 0.5 ... 2.5 mm² |
| finely stranded without core end processing | 0.5 ... 2.5 mm² |
| — solid or stranded | 2x (0.5 ... 2.5 mm²) |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| for AWG cables for auxiliary contacts | 2x (20 ... 14) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
