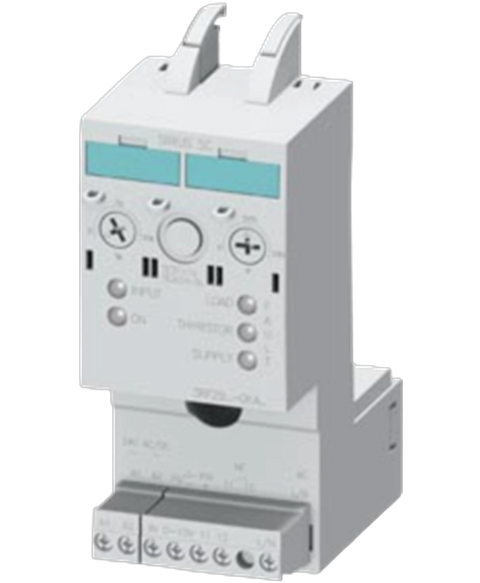

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RF29500KA16
Power controller Current range 50 A , 40 °C 400-600 V , 24 V AC,DC for semiconductor relay , contactor with partial load monitoring
This Siemens 3RF29500KA16 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Solid state contactors > Accessories range and is referenced internally as PartLogic SKU PL27083519804.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$376.29
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | power controller |
| product type designation | 3RF29 |
| _1 of the accessories that can be ordered | 3RF2900-0RA88sealable end cover |
| _2 of the accessories that can be ordered | input reactor / 1AC |
| product function | for 3RF21/23 solid-state relays/solid-state contactors |
| without load current share typical | 1 W |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 2.5 kV |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2g |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one - 71868-10-5 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) - 3147-75-9 |
| Net Weight | 0.169 kg |
| design of the switching function | NC contact |
| number of poles for main current circuit | 0 |
| number of NO contacts for main contacts | 0 |
| number of NC contacts for main contacts | 0 |
| type of voltage | AC/DC |
| at 50 Hz rated value | 400 ... 600 V20.5 ... 26.5 V24 V |
| at 60 Hz rated value | 400 ... 600 V20.5 ... 26.5 V24 V |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| at 50 Hz | 340 ... 660 V |
| at 60 Hz | 340 ... 660 V |
| at AC-51 rated value | 50 A |
| derating temperature | 40 °C |
| control supply voltage at DC rated value | 18 ... 30 V |
| control supply voltage 1 at DC rated value | 24 V |
| control supply voltage 1 at DC final rated value | 24 V |
| at 50 Hz full-scale value for signal<0> recognition | 5 V |
| at 60 Hz full-scale value for signal<0> recognition | 5 V |
| control supply voltage at DC full-scale value for signal<0> recognition | 5 V |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| symmetrical line frequency tolerance | 5 Hz |
| at AC | 2 mA |
| at DC | 2 mA |
| control current at AC rated value | 40 mA |
| control current at DC rated value | 40 mA |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| fastening method side-by-side mounting | Yes |
| fastening method | clip-on |
| height | 111.5 mm |
| width | 45 mm |
| depth | 69.5 mm |
| for auxiliary and control circuit | screw-type terminals |
| — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| tightening torque for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw of the auxiliary and control contacts | M3 |
| stripped length of the cable for auxiliary and control contacts | 7 mm |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| installation altitude at height above sea level maximum | 1 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
