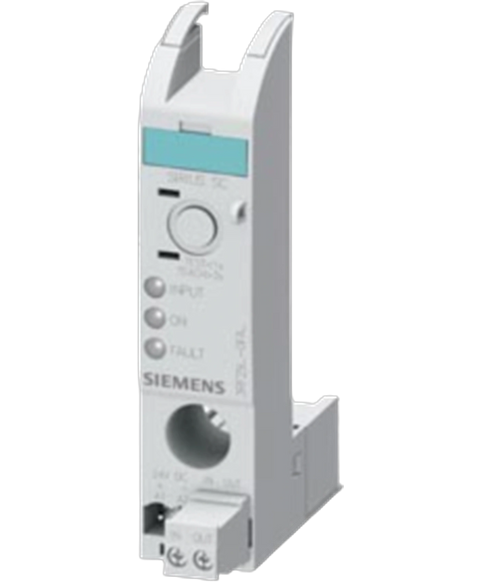

Product image for illustrative purposes only. Actual item may vary.
Siemens 3RF2920-0FA08
Siemens 3RF29200FA08 load monitoring module, 20A, 24VDC.
This Siemens 3RF2920-0FA08 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Solid state contactors > Accessories range and is referenced internally as PartLogic SKU PL26801445172.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$144.83
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | load monitoring, basis |
| product type designation | 3RF29 |
| _1 of the accessories that can be ordered | 3RF2900-0RA88sealable end cover |
| product function | for 3RF21/23 solid-state relays/solid-state contactors |
| without load current share typical | 0.6 W |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2g |
| reference code according to IEC 81346-2 | B |
| Substance Prohibitance (Date) | 05/01/2012 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one - 71868-10-5 |
| Net Weight | 71 g |
| design of the switching function | transistor |
| number of poles for main current circuit | 0 |
| number of NO contacts for main contacts | 0 |
| number of NC contacts for main contacts | 0 |
| type of voltage | DC |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| at AC-51 rated value | 20 A |
| derating temperature | 40 °C |
| control supply voltage at DC rated value | 18 ... 30 V |
| control supply voltage 1 at DC rated value | 24 V |
| control supply voltage 1 at DC final rated value | 24 V |
| control supply voltage at DC full-scale value for signal<0> recognition | 5 V |
| at DC | 2 mA |
| control current at DC rated value | 25 mA |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| fastening method side-by-side mounting | Yes |
| fastening method | clip-on |
| height | 101.5 mm |
| width | 22.5 mm |
| depth | 67 mm |
| for auxiliary and control circuit | screw-type terminals |
| — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| tightening torque for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw of the auxiliary and control contacts | M3 |
| stripped length of the cable for auxiliary and control contacts | 7 mm |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| installation altitude at height above sea level maximum | 1 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
