Siemens 3RF2310-1AA45

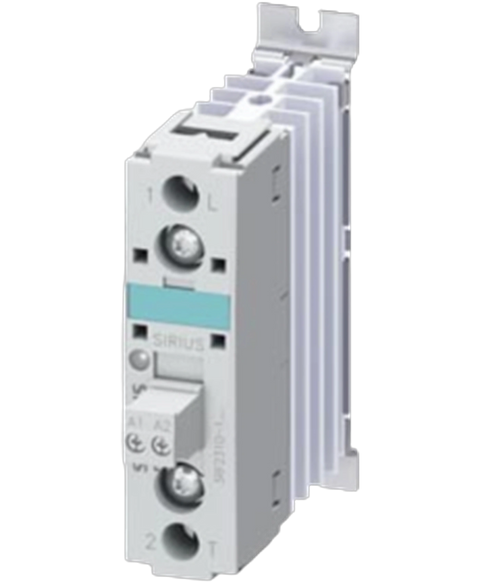

Siemens 3RF2310-1AA45 solid-state contactor, 10.5A, 48-600VAC.
This Siemens 3RF2310-1AA45 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Solid state contactors range and is referenced internally as PartLogic SKU PL26805536061.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$212.99
(inc. GST)
In Stock
| product brand name | SIRIUS |
| product designation | solid-state contactor |
| design of the product | 1-pole |
| product type designation | 3RF23 |
| _1 of the accessories that can be ordered | 3RF2900-3PA88terminal cover |
| _3 of the accessories that can be ordered | 3RF2900-0EA18converter |
| _4 of the accessories that can be ordered | 3RF2920-0GA16load monitoring |
| _5 of the accessories that can be ordered | 3RF2920-0FA08load monitoring, basis |
| product function | zero-point switching |
| at AC in hot operating state | 11 W |
| at AC in hot operating state per pole | 11 W |
| without load current share typical | 0.6 W |
| insulation voltage rated value | 600 V |
| degree of pollution | 3 |
| surge voltage resistance of main circuit rated value | 6 kV |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2g |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 05/28/2009 |
| SVHC substance name | Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 Dibutylbis(pentane-2,4-dionato-O,O')tin - 22673-19-4 |
| Net Weight | 145 g |
| number of poles for main current circuit | 1 |
| number of NO contacts for main contacts | 1 |
| number of NC contacts for main contacts | 0 |
| type of voltage of the operating voltage | AC |
| — at 50 Hz rated value | 48 ... 600 V |
| — at 60 Hz rated value | 48 ... 600 V |
| operating frequency rated value | 50 ... 60 Hz |
| at 50 Hz | 40 ... 660 V |
| at 60 Hz | 40 ... 660 V |
| at AC-1 at 400 V rated value | 10.5 A |
| at AC-51 rated value | 10.5 A |
| at AC-51 according to IEC 60947-4-3 | 7.5 A |
| according to UL 508 rated value | 9.6 A |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 500 V/µs |
| blocking voltage at the thyristor for main contacts maximum permissible | 1 200 V |
| reverse current of the thyristor | 10 mA |
| derating temperature | 40 °C |
| surge current resistance rated value | 200 A |
| I2t value maximum | 200 A²·s |
| type of voltage of the control supply voltage | DC |
| control supply voltage 1 at DC rated value maximum permissible | 30 V |
| control supply voltage 1 at DC | 4 ... 30 V |
| at DC initial value for signal <1> detection | 4 V |
| at DC full-scale value for signal<0> recognition | 1 V |
| at DC | 18 mA |
| control current at DC rated value | 20 mA |
| ON-delay time | 1 ms; additionally max. one half-wave |
| OFF-delay time | 1 ms; additionally max. one half-wave |
| number of CO contacts for auxiliary contacts | 0 |
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715 |
| design of the thread of the screw for securing the equipment | M4 |
| height | 95 mm |
| width | 22.5 mm |
| depth | 88 mm |
| product component removable terminal for auxiliary and control circuit | Yes |
| for main current circuit | screw-type terminals |
| for auxiliary and control circuit | screw-type terminals |
| — solid | 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²)1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| for AWG cables for main contacts | 2x (14 ... 10) |
| solid or stranded | 1.5 ... 6 mm² |
| finely stranded with core end processing | 1 ... 10 mm² |
| — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| AWG number as coded connectable conductor cross section for main contacts | 10 ... 14 |
| for main contacts with screw-type terminals | 2 ... 2.5 N·m18 ... 22 lbf·in |
| for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m4.5 ... 5.3 lbf·in |
| for main contacts | M410 mm |
| of the auxiliary and control contacts | M3 |
| for auxiliary and control contacts | 7 mm |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| installation altitude at height above sea level maximum | 1 000 m |
| during operation | -25 ... +60 °C |
| during storage | -55 ... +80 °C |
| due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| field-based interference according to IEC 61000-4-3 | 80 MHz ... 1 GHz 10 V/m, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
| of gS fuse for semiconductor protection at NH design usable | 3NE1813-0 |
| of full range R fuse link for semiconductor protection at cylindrical design usable | 5SE1316 |
| of back-up R fuse link for semiconductor protection at NH design usable | 3NE8015-1 |
| of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable | 3NC1016 |
| of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable | 3NC1420 |
| of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable | 3NC2220 |
| at NH design usable | 3NA6801 |
| at cylindrical design 10 x 38 mm usable | 3NW6001-1; These fuses have a smaller rated current than the semiconductor relays |
| at cylindrical design 14 x 51 mm usable | 3NW6101-1; These fuses have a smaller rated current than the semiconductor relays |
| of NEOZED fuse usable | 5SE2306; These fuses have a smaller rated current than the semiconductor relays |
