Siemens 3RB30161TB0

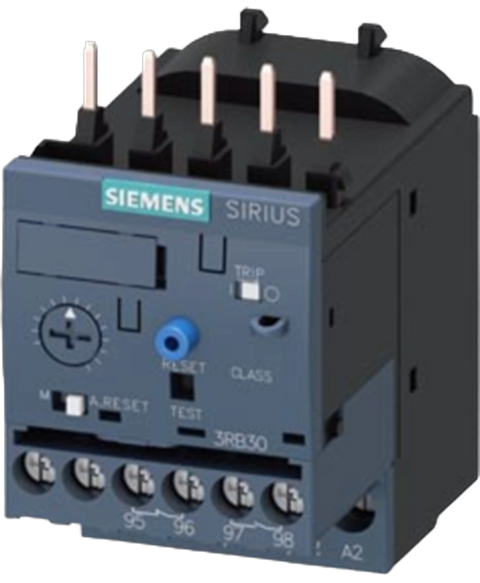

Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3RB30161TB0

SKU: PL27083503669
MPN: 3RB30161TB0

Overload relay 4...16 A for motor protection Size S00, Class 10E Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

This Siemens 3RB30161TB0 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Overload relays range and is referenced internally as PartLogic SKU PL27083503669.

Brand New - 12 Months Warranty
$336.53 (inc. GST)
In Stock

Datasheet

product brand name SIRIUS
product designation solid-state overload relay
product type designation 3RB3
size of overload relay S00
size of contactor can be combined company-specific S00
power loss [W] for rated value of the current at AC in hot operating state 1.1 W
per pole 0.37 W
insulation voltage with degree of pollution 3 at AC rated value 690 V
surge voltage resistance rated value 6 kV
in networks with ungrounded star point between auxiliary and auxiliary circuit 300 V
in networks with grounded star point between auxiliary and auxiliary circuit 300 V
in networks with ungrounded star point between main and auxiliary circuit 600 V
in networks with grounded star point between main and auxiliary circuit 690 V
shock resistance 15g / 11 ms
according to IEC 60068-2-27 15g / 11 ms; Signaling contact 97 / 98 in position "Tripped": 9g / 11 ms
vibration resistance 1-6 Hz, 15 mm; 6-500 Hz, 20 m/s²; 10 cycles
thermal current 16 A
with automatic reset typical 3 min
with remote-reset 0 min
with manual reset 0 min
reference code according to IEC 81346-2 F
Substance Prohibitance (Date) 10/01/2009
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 0.219 kg
installation altitude at height above sea level maximum 2 000 m
during operation -25 ... +60 °C
during storage -40 ... +80 °C
during transport -40 ... +80 °C
temperature compensation -25 ... +60 °C
relative humidity during operation 10 ... 95 %
number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 4 ... 16 A
rated value 690 V
at AC-3e rated value maximum 690 V
operating frequency rated value 50 ... 60 Hz
operational current rated value 16 A
operational current at AC-3e at 400 V rated value 16 A
for 3-phase motors at 400 V at 50 Hz 2.2 ... 7.5 kW
for AC motors at 500 V at 50 Hz 2.2 ... 7.5 kW
for AC motors at 690 V at 50 Hz 3 ... 11 kW
design of the auxiliary switch integrated
number of NC contacts for auxiliary contacts 1
note for contactor disconnectionfor message "tripped"
number of NO contacts for auxiliary contacts 1
number of CO contacts for auxiliary contacts 0
at 24 V 4 A2 A
at 110 V 4 A0.3 A
at 120 V 4 A
at 125 V 4 A0.3 A
at 230 V 3 A
at 60 V 0.55 A
at 220 V 0.11 A
trip class CLASS 10E
design of the overload release electronic
at 480 V rated value 16 A
at 600 V rated value 16 A
contact rating of auxiliary contacts according to UL B600 / R300
— with type of coordination 1 required gG: 50 A, RK5: 60 A
— with type of coordination 2 required gG: 50 A, J: 60 A
for short-circuit protection of the auxiliary switch required fuse gG: 6 A
mounting position any
fastening method Contactor mounting
height 79 mm
width 45 mm
depth 73 mm
product component removable terminal for auxiliary and control circuit Yes
for main current circuit screw-type terminals
for auxiliary and control circuit screw-type terminals
arrangement of electrical connectors for main current circuit Top and bottom
solid 1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 4 mm²)
solid or stranded 1x (0,5 ... 4 mm²), 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 4 mm²)
finely stranded with core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 2.5 mm²)
— solid 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
— solid or stranded 1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)
— finely stranded with core end processing 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
for AWG cables for auxiliary contacts 1x (20 ... 14), 2x (20 ... 14)
for main contacts with screw-type terminals 0.8 ... 1.2 N·m
for auxiliary contacts with screw-type terminals 0.8 ... 1.2 N·m
design of screwdriver shaft Diameter 5 to 6 mm
size of the screwdriver tip Pozidriv PZ 2
for main contacts M3
of the auxiliary and control contacts M3
protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe, for vertical contact from the front
type of voltage supply via input/output link master No
due to burst according to IEC 61000-4-4 2 kV (power ports), 1 kV (signal ports) corresponds to degree of severity 3
due to conductor-earth surge according to IEC 61000-4-5 2 kV (line to earth) corresponds to degree of severity 3
due to conductor-conductor surge according to IEC 61000-4-5 1 kV (line to line) corresponds to degree of severity 3
due to high-frequency radiation according to IEC 61000-4-6 10 V in frequency range 0.15 to 80 MHz, modulation 80 % AM with 1 kHz
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 6 kV contact discharge / 8 kV air discharge
display version for switching status Slide switch
