Siemens 3RA61202EB32
Product image for illustrative purposes only. Actual item may vary.
Siemens logo

Siemens 3RA61202EB32

SKU: PL27083481417
MPN: 3RA61202EB32

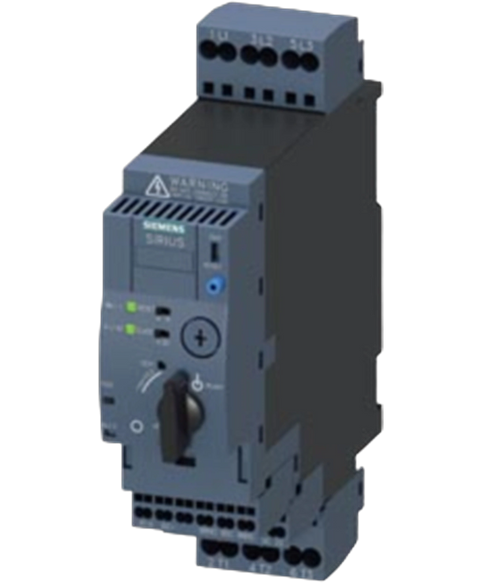

SIRIUS Compact load feeder DOL starter 690 V 24 V AC,DC 50...60 Hz 8...32 A IP20 Connection main circuit: Spring-type terminal Connection auxiliary circuit: Spring-type terminal

This Siemens 3RA61202EB32 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters range and is referenced internally as PartLogic SKU PL27083481417.

Brand New - 12 Months Warranty
$1,361.77 (inc. GST)
In Stock
product brand name SIRIUS
product designation compact starter
design of the product direct starter
product type designation 3RA61
product function control circuit interface to parallel wiring Yes
product extension auxiliary switch Yes
at AC in hot operating state 5.4 W
at AC in hot operating state per pole 1.8 W
without load current share typical 3.5 W
insulation voltage rated value 690 V
degree of pollution 3
surge voltage resistance rated value 6 000 V
between main and auxiliary circuit 400 V
between auxiliary and auxiliary circuit 250 V
between control and auxiliary circuit 300 V
degree of protection NEMA rating other
shock resistance a=60 m/s2 (6g) with 10 ms per 3 shocks in all axes
vibration resistance f= 4 ... 5.8 Hz, d= 15 mm; f= 5.8 ... 500 Hz, a= 20 m/s²; 10 cycles
of the main contacts typical 10 000 000
of auxiliary contacts typical 10 000 000
of the signaling contacts typical 10 000 000
at DC-13 at 6 A at 24 V typical 30 000
at AC-15 at 6 A at 230 V typical 200 000
type of coordination continous operation according to IEC 60947-6-2
reference code according to IEC 81346-2 Q
Substance Prohibitance (Date) 05/01/2012
SVHC substance name Lead - 7439-92-1 Lead monoxide (lead oxide) - 1317-36-8 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol - 79-94-7 Lead titanium zirconium oxide - 12626-81-2 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1
Net Weight 1.532 kg
installation altitude at height above sea level maximum 2 000 m
during operation -20 ... +60 °C
during storage -55 ... +80 °C
during transport -55 ... +80 °C
relative humidity during operation 10 ... 90 %
number of poles for main current circuit 3
adjustable current response value current of the current-dependent overload release 8 ... 32 A
formula for making capacity limit current 12 x Ie
formula for limit current breaking capacity 10 x Ie
at 400 V rated value 15 kW53 kA
at 500 V rated value 11 kW1 kA
at 690 V rated value 11 kW1 kA
operating voltage at AC-3 rated value maximum 690 V
at AC at 400 V rated value 32 A
at AC-3 at 400 V rated value 32 A15 kW
— at 400 V rated value 29 A15 000 W
— at 500 V rated value 17.6 A11 000 W
— at 690 V rated value 12.8 A11 000 W
no-load switching frequency 3 600 1/h
at AC-41 according to IEC 60947-6-2 maximum 750 1/h
at AC-43 according to IEC 60947-6-2 maximum 250 1/h
type of voltage AC/DC
at 50 Hz rated value 24 V
at 50 Hz 24 ... 24 V
at 60 Hz rated value 24 V
at 60 Hz 24 V
1 rated value 50 Hz
2 rated value 60 Hz
control supply voltage 1 at DC rated value 24 V
control supply voltage 1 at DC 24 ... 24 V
at AC maximum 3.5 W
at DC maximum 3.1 W
number of NC contacts for auxiliary contacts 1
number of NO contacts for auxiliary contacts 1
number of NO contacts of instantaneous short-circuit trip unit for signaling contact 1
number of CO contacts of the current-dependent overload release for signaling contact 1
operational current of auxiliary contacts at AC-12 maximum 10 A
operational current of auxiliary contacts at DC-13 at 250 V 0.27 A
trip class CLASS 10 and 20 adjustable
at 480 V rated value 32 A
at 200/208 V rated value 7.5 hp
at 220/230 V rated value 10 hp
at 460/480 V rated value 20 hp
contact rating of auxiliary contacts according to UL contacts 21-22, 13-14, 43-44 Q600 / A600, contacts 77-78 R300 / B300, contacts 95-96-98 R300 / D300
product function short circuit protection Yes
design of short-circuit protection electromagnetic
for short-circuit protection of the auxiliary switch required fuse gL/gG: 10 A
for short-circuit protection of the signaling switch of the short-circuit release required 6A gL/gG/400V
for short-circuit protection of the signaling switch of the overload release required 4A gL/gG/400V
mounting position any
mounting position recommended vertical, on horizontal standard DIN rail
fastening method screw and snap-on mounting
height 191 mm
width 45 mm
depth 165 mm
product component removable terminal for main circuit Yes
product component removable terminal for auxiliary and control circuit Yes
for main current circuit spring-loaded terminals
for auxiliary and control circuit spring-loaded terminals
solid 2x (2.5 ... 6 mm²), 1x 10 mm²
finely stranded with core end processing 2x (2.5 ... 6 mm²)
finely stranded without core end processing 2x (2.5 ... 6 mm²)
— solid 2x (0.25 ... 1.5 mm²)
— finely stranded with core end processing 2x (0.25 ... 1.5 mm²)
— finely stranded without core end processing 2x (0.25 ... 1.5 mm²)
for AWG cables for auxiliary contacts 2x (24 ... 16)
with low demand rate according to SN 31920 40 %
with high demand rate according to SN 31920 50 %
B10 value with high demand rate according to SN 31920 2 000 000
failure rate [FIT] with low demand rate according to SN 31920 100 FIT
T1 value for proof test interval or service life according to IEC 61508 20 a
protection class IP on the front according to IEC 60529 IP20
touch protection on the front according to IEC 60529 finger-safe
product function bus communication No
AS-Interface protocol No
IO-Link protocol No
product function control circuit interface with IO link No
due to burst according to IEC 61000-4-4 4 kV main contacts, 2 kV auxiliary contacts
due to conductor-earth surge according to IEC 61000-4-5 4 kV main contacts, 2 kV auxiliary contacts
due to conductor-conductor surge according to IEC 61000-4-5 2 kV main contacts, 1 kV auxiliary contacts
due to high-frequency radiation according to IEC 61000-4-6 0.15-80Mhz at 10V
field-based interference according to IEC 61000-4-3 10 V/m
electrostatic discharge according to IEC 61000-4-2 8 kV
conducted HF interference emissions according to CISPR11 150 kHz ... 30 MHz Class A
field-bound HF interference emission according to CISPR11 30 ... 1000 MHz Class A
Supply voltage required Auxiliary voltage No
number of LEDs 2
