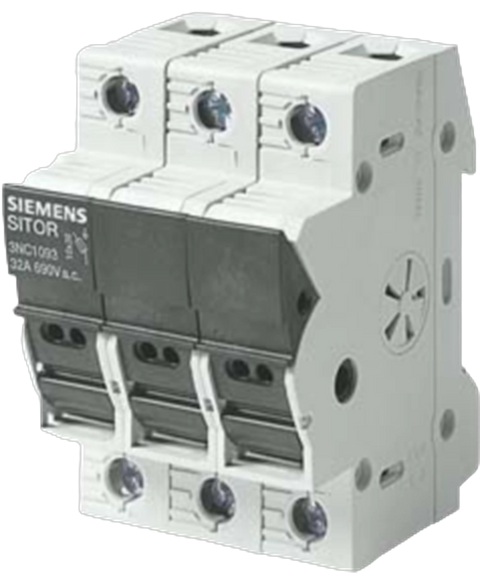

Siemens 3NC1093
SITOR fuse switch 10x 38, Up to 32 A, 690 V AC, 3-pole
This Siemens 3NC1093 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Fuses range and is referenced internally as PartLogic SKU PL27083385433.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | SITOR fuse switch disconnector |
| design of the actuating element | swivel knob |
| number of poles | 3 |
| size of fuse link | 10x38 |
| utilization category | According to IEC 60947-3; AC 22B/32 A/400 V; AC22B/10 A/690 V |
| size of the fuse link | 10 x 38 mm |
| at AC rated value maximum | 690 V |
| at DC rated value maximum | 800 V |
| protection class IP on the front | IP20 |
| operational current rated value | 32 A |
| suitability for use main switch | No |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
| suitability for use safety switch | Yes |
| product function fuse monitoring | No |
| conditional short-circuit current (Iq) rated value | 50 kA |
| minimum | 1.5 mm² |
| maximum | 25 mm² |
| type of electrical connection for main current circuit | screw-type terminals |
| height | 80 mm |
| depth | 58 mm |
| floor mounting | No |
| rail mounting | No |
| Net Weight | 155 g |
