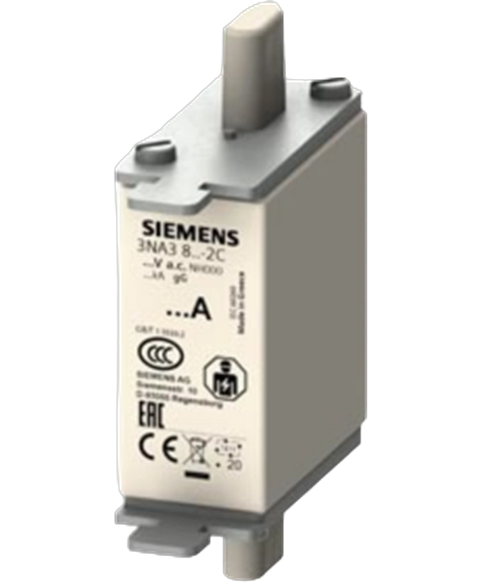

Siemens 3NA38072C
LV HRC fuse link GG,gL +non-insulated grip lugs size 000, 20 A, 500 V
This Siemens 3NA38072C is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Fuses range and is referenced internally as PartLogic SKU PL27083378213.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system according to EN 60269-1 | NH000 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage of the operating voltage | AC/DC |
| operational current at AC rated value | 20 A |
| at AC | 500 V |
| at DC | 250 V |
| protection class IP | IP20, with connected conductors |
| breaking capacity at AC according to IEC 60269 rated value | 120 kA |
| breaking capacity at DC with time constant ≤ 10 ms according to IEC 60269 rated value | 25 kA |
| power loss [W] | 2.53 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 3 W |
| width of the enclosure | 21 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 123 g |
| minimum | -5 °C |
| maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category during storage | 90% at 20°C |
| reference code according to IEC 81346-2 | FC |
