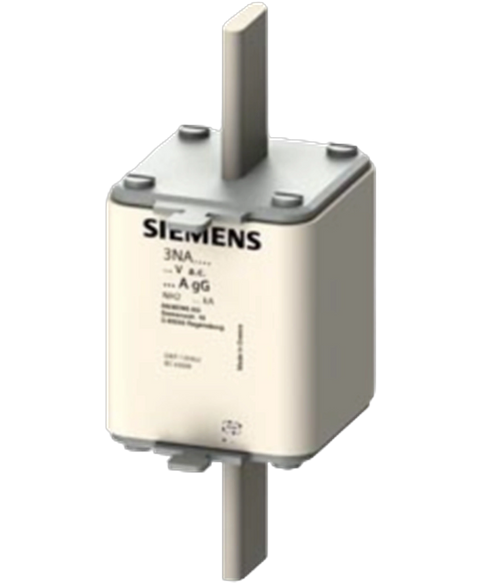

Siemens 3NA3260
The Siemens 3NA3260 is an LV HRC Fuse Element with a fuse type of NH2. It is rated for 400A and designed to handle voltages of up to 500 VAC and 440 VDC, suitable for various applications.
This Siemens 3NA3260 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Fuses range and is referenced internally as PartLogic SKU PL27083364059.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| product brand name | SENTRON |
| product designation | LV HRC fuse link |
| design of the product | With blade contacts |
| design of an identification indicator | Front indicators |
| design of the switching contact | Non-corroding, silver-plated |
| design of the fuse link | LV HRC fuse link |
| size of fuse system according to EN 60269-1 | NH2 |
| operating class of the fuse link | gG |
| mounting type | non-insulated grip lugs |
| type of voltage of the operating voltage | AC/DC |
| operational current at AC rated value | 400 A |
| at AC | 500 V |
| at DC | 440 V |
| protection class IP | IP20, with connected conductors |
| breaking capacity at AC according to IEC 60269 rated value | 120 kA |
| breaking capacity at DC with time constant ≤ 10 ms according to IEC 60269 rated value | 25 kA |
| power loss [W] | 29 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 29 W |
| width of the enclosure | 57.8 mm |
| mounting position | Any, preferably vertical |
| Net Weight | 656.5 g |
| minimum | -5 °C |
| maximum | 40 °C |
| environmental category | -20 to +50 at 95% relative humidity |
| environmental category during storage | 90% at 20°C |
| reference code according to IEC 81346-2 | FC |
| global warming potential [CO2 eq] / during manufacturing | 6 kg |
| global warming potential [CO2 eq] / during sales | 0.144 kg |
| global warming potential [CO2 eq] / during operation | 42.8 kg |
| global warming potential [CO2 eq] / after end of life | -0.352 kg |
| global warming potential [CO2 eq] / total | 48.6 kg |
