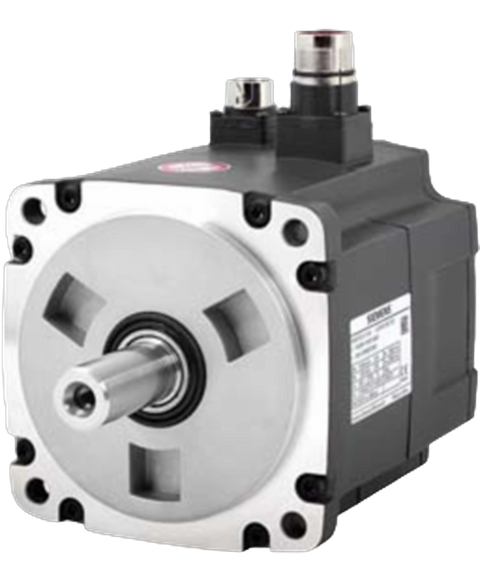

Siemens 1FL6064-1AC61-0AA1
The Siemens 1FL6064-1AC61-0AA1 is a permanent magnet synchronous motor, part of the SIMOTICS series. Operating at 400 V 3-phase, it delivers a nominal power of 1.5 kW and achieves a speed of 2000 rpm with a rated torque of 7.16 Nm.
This Siemens 1FL6064-1AC61-0AA1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27103548517.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIMOTICS |
| Part Number | 1FL6064-1AC61-0AA1 |
| UPC | 887621438494 |
| Weight | 18.00 lbs (8.16 kg) |
| Name | Permanent Magnet Synchronous Motor (PMSM) |
| Operating Voltage | 400 V 3 AC |
| Nominal Power | 1.5 kW |
| Nominal Speed | 2000 rpm |
| Rated Torque | 7.16 Nm |
| Standstill Torque | 8 Nm |
| Shaft Height | 65 mm |
| Mounting Type | Flange-mounted |
| Encoder Type | Incremental encoder |
| Encoder Resolution | 2500 increments per revolution |
| Tolerance Class | Tolerance N |
| Motor Frame Size | 65 mm |
| Degree of Protection | IP65 |
| Ambient Temperature | -10°C to +40°C |
| Insulation Class | F (155°C) |
| Brand | Siemens |
