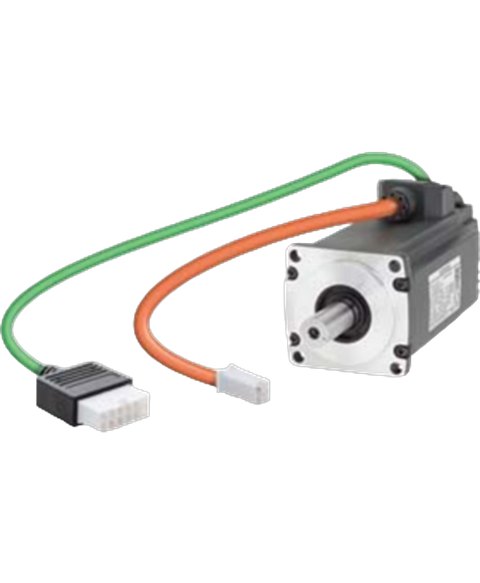

Siemens 1FL6034-2AF21-1AG1
The Siemens 1FL6034-2AF21-1AG1 is a permanent magnet synchronous servo motor designed for precise motion control. It operates on a 3-phase, 230 V AC supply and is rated for a power output of 0.4 kW while achieving speeds up to 3000 rpm.
This Siemens 1FL6034-2AF21-1AG1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805547845.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIMOTICS |
| Part Number | 1FL6034-2AF21-1AG1 |
| UPC | 804766284069 |
| Weight | 3.00 lbs (1.36 kg) |
| Series | AC Motors |
| Name | Permanent magnet synchronous servo motor |
| Operating Voltage | 230 V AC, 3-phase |
| Rated Power | 0.4 kW |
| Rated Speed | 3000 rpm |
| Rated Torque | 1.27 Nm |
| Shaft Height | 30 mm |
| Shaft Type | Plain shaft, without holding brake |
| Encoder Type | Incremental encoder |
| Encoder Resolution | 2500 increments per revolution |
| Motor Efficiency | >85% |
| Encoder Output Type | TTL (Transistor-Transistor Logic) |
| Commutator | No commutator |
| Cooling Method | Natural air cooling (self-ventilated) |
| Operating Temperature Range | 0°C to 40°C |
| Motor Mounting | Flange-mounted with a plain shaft |
| Brand | Siemens |
