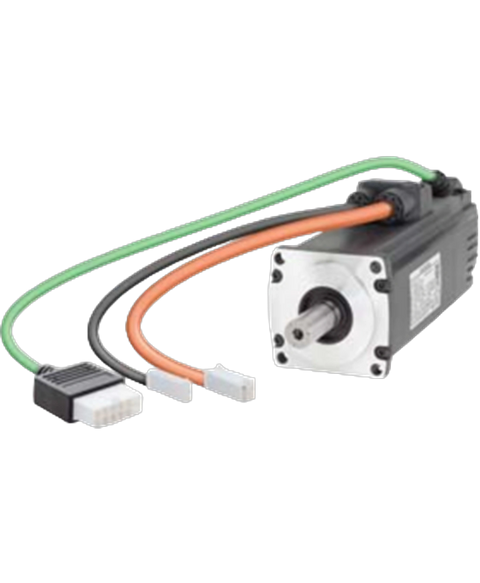

Siemens 1FL6032-2AF21-1AB1
Simotics s-1fl6 operating voltage 230 v 3ac pn=0.2kW; nn=3000 rpm m0=0.64 nm; mn=0.64 nm; shaft height 30mm incremental encoder ttl 2500 incr.,rev. with feather key tolerance n with holding brake degree of protection IP65 with sealing ring compatible wi
This Siemens 1FL6032-2AF21-1AB1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27101983871.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SIMOTICS |
| Part Number | 1FL6032-2AF21-1AB1 |
| UPC | 887621925062 |
| Weight | 1.00 lbs (0.45 kg) |
| Product | Synchronous AC Servo Motor |
| Rated Power | 0.2 kW |
| Rated Speed | 3000 RPM |
| Rated Torque | 0.64 Nm |
| Shaft Height | 30 mm |
| Encoder Type | Incremental TTL 2500 pulses/rev |
| Protection Class | IP65 with sealing ring |
| Brake | With holding brake |
| Mounting Type | Flange Mount |
| Height | 182 mm |
| Length | 316 mm |
| Width | 170 mm |
| Brand | Siemens |
