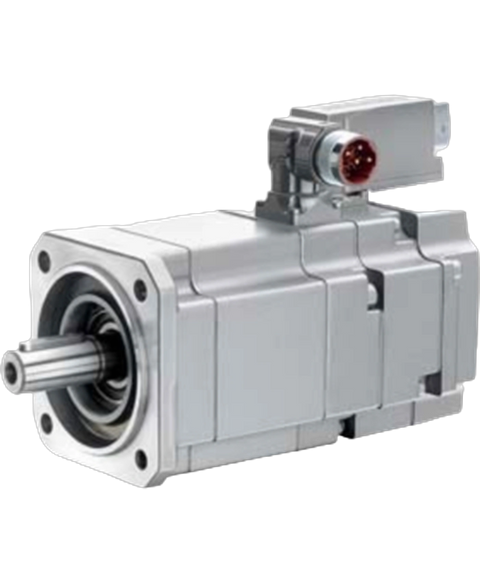

Siemens 1FK7080-5AF71-1EG0
The Siemens 1FK7080-5AF71-1EG0 is a synchronous servo motor that features a rated torque of 8 Nm and operates at speeds up to 3000 rpm. With a power output of 2.14 kW, this motor is naturally cooled for optimal efficiency.
This Siemens 1FK7080-5AF71-1EG0 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27083173263.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | 1FK7 |
| Part Number | 1FK7080-5AF71-1EG0 |
| UPC | 662643367119 |
| Weight | 10.00 lbs (4.54 kg) |
| Name | Synchronous Servo Motor |
| Rated Torque | 8 Nm |
| Rated Speed | 3000 rpm |
| Power Output | 2.14 kW |
| Cooling Type | Naturally Cooled |
| Encoder Type | Absolute Encoder ENDAT 2048 P/REV (Encoder A-2048) |
| Performance Reduction | Due to Absolute Encoder, performance reduced by 10% |
| Connector Type | Rotatable power/signal connector plug by 270° |
| Protection Rating | IP64 |
| Mounting Type | IM B5 (IM V1, IM V3) |
| Brand | Siemens |
