Siemens 1FK7060-5AF71-1GH0

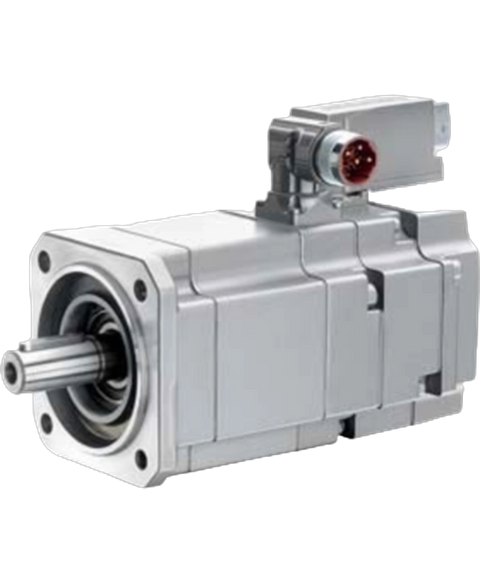

The 1FK7060-5AF71-1GH0 motor from Siemens, part of the 1FK7 series, operates efficiently at a rated voltage of 400V AC. It boasts a maximum speed of 3000 RPM and a torque delivery of 10 Nm, with an impressive power capability of 3.5 kW.
This Siemens 1FK7060-5AF71-1GH0 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805591583.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | 1FK7 |
| Part Number | 1FK7060-5AF71-1GH0 |
| UPC | 662643142587 |
| Weight | 18.00 lbs (8.16 kg) |
| Rated Voltage | 400V AC |
| Rated Speed | 3000 RPM |
| Rated Torque | 10 Nm |
| Power Output | 3.5 kW |
| Inertia | Medium Inertia |
| Cooling Method | Natural Convection |
| Mounting Type | Flange Mount |
| Shaft Type | Straight with Keyway |
| Protection Rating | IP65 |
| Vibration Resistance | 2 g at 10-500 Hz |
| Temperature Range | 0°C to 40°C |
| Feedback Type | Resolver |
| Overload Capacity | 300% for 3 seconds |
| Brand | Siemens |
