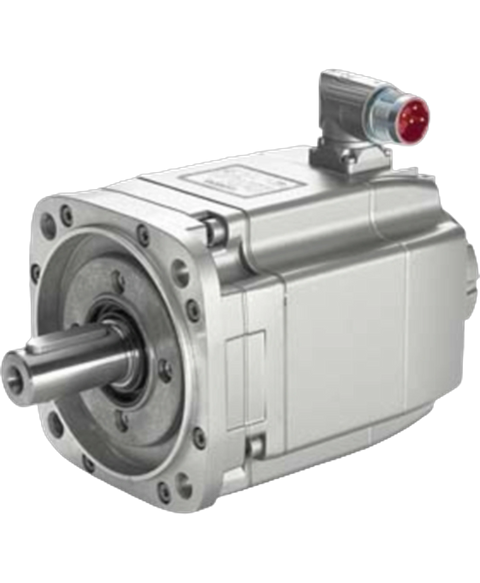

Siemens 1FK7060-2AF71-1QA0
The Siemens 1FK7060-2AF71-1QA0 synchronous motor is designed for efficient performance, reaching a rated speed of 3000 RPM. It features an 8-pole configuration along with a rated torque of 4.7 Nm and operates at a rated current of 3.7 A.
This Siemens 1FK7060-2AF71-1QA0 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL27083136913.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | 1FK7 |
| Part Number | 1FK7060-2AF71-1QA0 |
| UPC | 887621227593 |
| Weight | 16.00 lbs (7.26 kg) |
| Product | Synchronous Motor |
| Rated Speed | 3000 RPM |
| Number of Poles | 8 |
| Rated Torque | 4.7 Nm |
| Rated Current | 3.7 A |
| Static Torque | 5 Nm |
| Stall Current | 3.6 A |
| Moment of Inertia | 7.700 kgcm² |
| Efficiency | 90% |
| Torque Constant | 1.33 Nm/A |
| Cooling | Natural Cooling |
| Degree of Protection | IP64 |
| Optimum Power | 1.5 kW |
| Rotating Field Inductance | 15.2 mH |
| Electrical Time Constant | 11.30 ms |
| Brand | Siemens |
