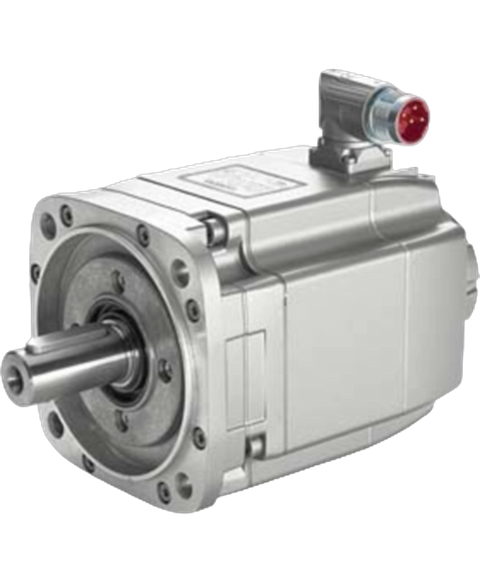

Siemens 1FK7032-2AK71-1CH1
The 1FK7032-2AK71-1CH1 synchronous motor from Siemens is designed for high-speed applications, achieving a rated speed of 6000 RPM. With six poles and a rated torque of 0.8 Nm, it is suitable for various industrial tasks.
This Siemens 1FK7032-2AK71-1CH1 is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805597812.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | 1FK7 |
| Part Number | 1FK7032-2AK71-1CH1 |
| UPC | 040892928662 |
| Weight | 7.00 lbs (3.18 kg) |
| Product | Synchronous Motor |
| Rated Speed | 6000 RPM |
| Number of Poles | 6 |
| Rated Torque | 0.8 Nm |
| Rated Current | 1.3 A |
| Static Torque | 1.1 Nm |
| Stall Current | 1.7 A |
| Moment of Inertia | 0.750 kgcm² |
| Efficiency | 88% |
| Torque Constant | 0.67 Nm/A |
| Winding Resistance | 5.05 Ω |
| Rotating Field Inductance | 17.3 mH |
| Electrical Time Constant | 3.45 ms |
| Mechanical Time Constant | 2.20 ms |
| Degree of Protection | IP65 |
| Brand | Siemens |
