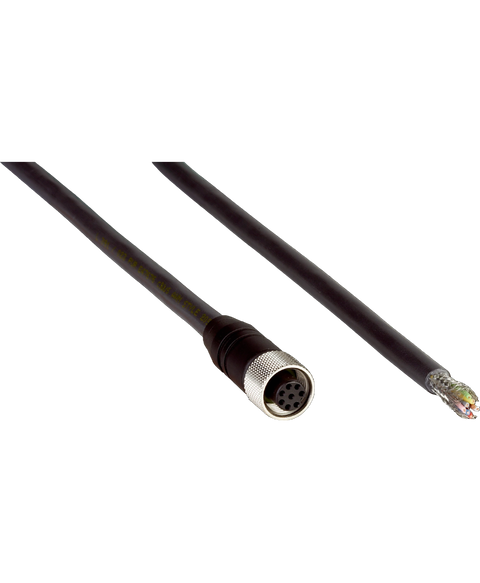

SICK YF2A68-050XXXXLEAX
(6032449), discontinued by manufacturer, (6032449) cable, hiperface, m12, 8-pin, 5m, female, shielded via knurled nut,dol-1208-g05mah1, dol-1208-g05mah1 cab.,fe
This SICK YF2A68-050XXXXLEAX is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Accessories > Cables range and is referenced internally as PartLogic SKU PL26805606254.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Connection type head A | Female connector, M12, 8-pin, straight |
| Connection type head B | Flying leads |
| Cable | 5 m, 8-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 7 mm |
| Conductor cross section | 0.25 mm² |
| Shielding | Shielded |
| Flexible use | > 10 x cable diameter |
| Stationary position | > 5 x cable diameter |
| Bending cycles | > 2,000,000 |
| Current loading | 4 A |
| Traversing speed | 3.3 m/s |
| Travelling distance | 5 m |
| Acceleration | ≤ 5 m/s² |
| Application | Drag chain operation Zones with oils and lubricants |
| Enclosure rating | IP67 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECLASS 5.0 | 19030312 |
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
