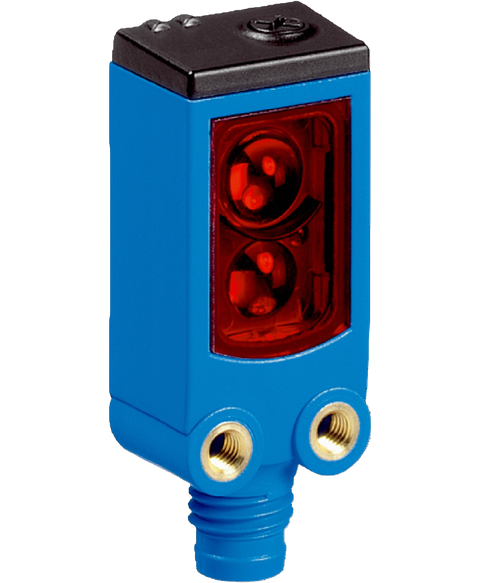

SICK WTV4-3P3441S38
Discontinued by manufacturer, miniature photoelectric sensor, w4-3, proximity sensor, background suppression, 4-50mm sensing range max, pinpoint led, pnp light switching, 10-30VDC, 4 pin m12 male connector with 150mm cable, 1040696
This SICK WTV4-3P3441S38 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805603407.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 4 mm ... 50 mm 1) |
| Sensing range | 3 mm ... 30 mm 1) |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | 7 mm x 5 mm (20 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| Special applications | Detecting uneven, shiny objects, Detecting objects wrapped in film |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 20 mA 3) |
| Protection class | III |
| Type | PNP |
| Switching mode | Light switching |
| Output current I max. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 1,000 Hz 5) |
| Circuit protection | A 6) C 7) D 8) |
| Special feature | V-optics |
| Housing | Rectangular | Plastic, ABS |
| Design detail | Flat |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Connection | Cable with M12 male connector, 4-pin 1) |
| Conductor size | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Length of cable (L) | 150 mm 1) |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 30 g |
| Enclosure rating | IP67 IP66 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
