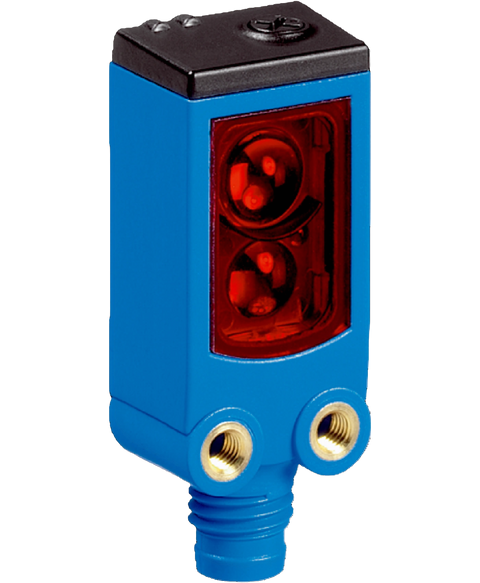

SICK WTV4-3P2271
Discontinued by manufacturer, (1046644) proximity pe, bgs v-optic, pnp, l,d operate, 50mm sensing range with line light spot, m8 4-pin
This SICK WTV4-3P2271 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805754749.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 3 mm ... 50 mm 1) |
| Sensing range | 5 mm ... 50 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | 3 mm x 20 mm (40 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| AutoAdapt | ✔ |
| Special feature | V-optics, Line-shaped light spot |
| Special applications | Detecting perforated objects, Detecting objects with position tolerances, Detecting uneven, shiny objects, Detecting objects wrapped in film |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 20 mA 3) |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light switching |
| Output current I max. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | A 6) C 7) D 8) |
| Protection class | III |
| Weight | 30 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 IP66 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| MTTF D | 1,146 years |
| DC avg | 0 % |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
