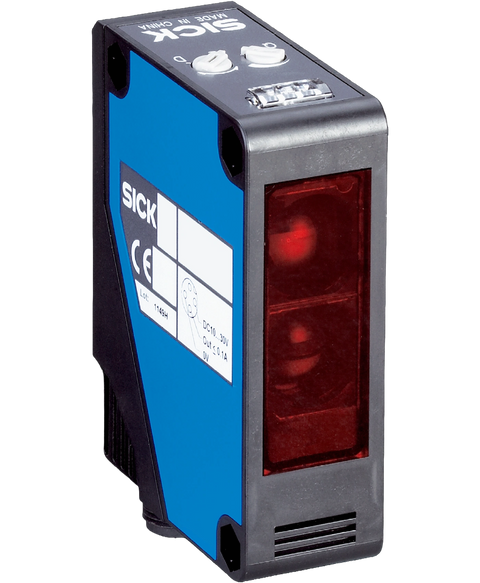

SICK WTT280L-2P2536
Proximity sensor, 10-30VDC, red, m12 connector, 5 pin
This SICK WTT280L-2P2536 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805617073.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression, Optical time-of-flight |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 200 mm ... 4,000 mm 200 mm ... 3,000 mm |
| Sensing range | 200 mm ... 4,000 mm 200 mm ... 3,000 mm |
| Type of light | Visible red light |
| Light source | Laser |
| Light spot size (distance) | Ø 12 mm (3 m) |
| Laser class | 1 (EN 60825-1:2014, IEC 60825-1:2014) |
| Adjustment | Potentiometer (2 x) |
| Special applications | Detecting small objects |
| Items supplied | Mounting bracket BEF-W280 |
| MTTF D | 193 years |
| DC avg | 0 % |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 70 mA |
| Switching output | PNP |
| Number of switching outputs | 2 (Q 1 , Q 2 ) |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 0.5 ms |
| Switching frequency | 1,000 Hz |
| Analog output | - |
| Input | Sender off |
| Circuit protection | A B C D |
| Protection class | III |
| Enclosure rating | IP67 |
| Dimensions (W x H x D) | 23.5 mm x 76 mm x 55.8 mm |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Weight | 120 g |
| Connection type | Plug, M12, 5-pin |
| Ambient operating temperature | –10 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
