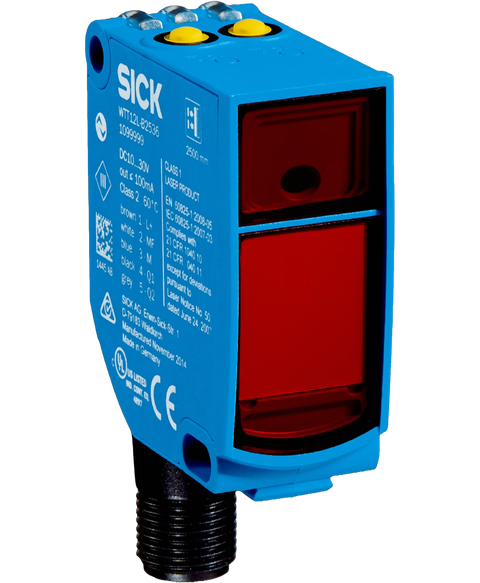

SICK WTT12LC-B2543
Laser distance sensor, powerprox, 1800mm max range, 1mm resolution, visible red laser, teach-in, I,O-link v1.1 com2, 10-30VDC supply, push-pull, pnp,npn, light switching, IP67, 5-pin m12 connector, (1072659)
This SICK WTT12LC-B2543 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805603483.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression, Optical time-of-flight, distance value |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 1,800 mm |
| Sensing range | 100 mm ... 1,800 mm |
| Measuring range | 50 mm ... 1,800 mm |
| Resolution | 1,000 µm |
| Repeatability | 0,9 mm ... 1,3 mm |
| Accuracy | Typ. ± 15 mm |
| Type of light | Visible red light |
| Light source | Laser |
| Light spot size (distance) | Ø 12 mm (1,800 mm) |
| Wave length | 658 nm |
| Laser class | 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) |
| Adjustment | Single teach-in button (2 x), IO-Link |
| MTTF D | 138 years |
| DC avg | 0 % |
| T M (mission time) | 20 years |
| Communication interface | IO-Link V1.1 |
| Communication Interface detail | COM2 (38,4 kBaud) |
| Cycle time | 5 ms |
| Process data length | 32 Bit |
| Process data structure | Bit 0 = switching signal Q O1 Bit 1 = switching signal Q O2 Bit 2 ... 8 = BDC 2 ... 8 Bit 9 ... 15 = empty Bit 16 ... 31 = distance value |
| Additional features | 8 switching points for distance to object, of which 2 can be inverted, 1 switching point as switching window or configurable with hysteresis., multifunctional input: sender off, external teach, inactive |
| VendorID | 26 |
| DeviceID HEX | 0x800096 |
| DeviceID DEC | 8388758 |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 70 mA |
| Switching output | Push-pull: PNP/NPN |
| Number of switching outputs | 2 (Q 1 , Q 2 ) |
| Switching mode | Light switching |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 16.7 ms |
| Switching frequency | 30 Hz |
| Analog output | - |
| Input | MF in = multifunctional input programmable |
| Circuit protection | A B C |
| Protection class | III |
| Enclosure rating | IP67 |
| Warm-up time | < 15 min |
| Initialization time | < 300 ms |
| Dimensions (W x H x D) | 20 mm x 49.6 mm x 44.2 mm |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Weight | 48 g |
| Connection type | Plug, M12, 5-pin |
| Ambient operating temperature | –35 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
