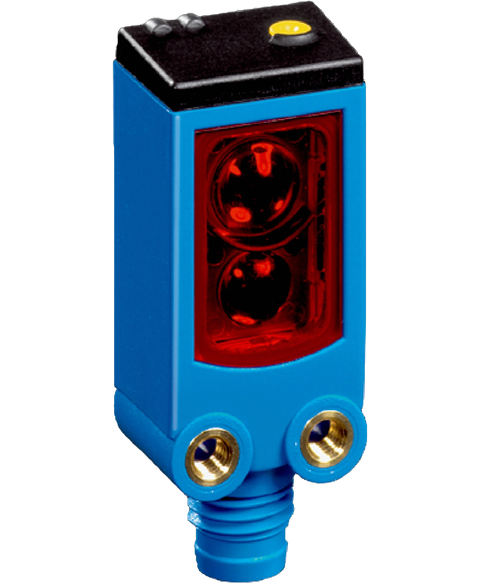

SICK WTB4-3P2192
Discontinued by manufacturer, photoelectric sensor, diffuse, background suppression, 5-120mm sensing range, pnp, m8 3 pin connector, 1058268
This SICK WTB4-3P2192 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805618897.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm ... 120 mm 1) |
| Sensing range | 40 mm ... 120 mm 1) |
| Type of light | Infrared light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | 5 mm x 22 mm (40 mm) 3) |
| Wave length | 850 nm |
| Adjustment | Single teach-in button |
| Special feature | Line-shaped light spot |
| Special applications | Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects wrapped in film |
| Special features | Multi-background suppression |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current I max. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 400 Hz 5) |
| Connection type | Connector M8, 3-pin 6) |
| Circuit protection | A 7) C 8) D 9) |
| Protection class | III |
| Weight | 30 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 IP66 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
