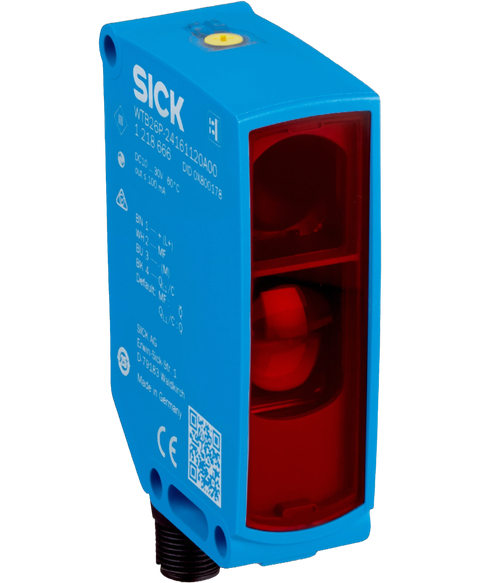

SICK WTB26I-24161120A00
Photoelectric proximity sensor, background suppression, 30-2000mm sensing range, led infrared light, push-pull pnp,npn switching output, 10-30VDC, 4pin m12 male connector, 1218667
This SICK WTB26I-24161120A00 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801404654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$425.99
(inc. GST)
In Stock
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range min. | 30 mm |
| Sensing range max. | 2,000 mm |
| Adjustable switching threshold for background suppression | 180 mm ... 2,000 mm |
| Reference object | Object with 90% remission factor (complies with standard white according to DIN 5033) |
| Minimum distance between set sensing range and background (black 6% / white 90%) | 85 mm, at a distance of 800 mm |
| Recommended sensing range for the best performance | 200 mm ... 800 mm |
| Light source | LED |
| Type of light | Infrared light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | Ø 14 mm (1,000 mm) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | U = +23 °C) |
| Normative reference | EN 62471:2008-09 | IEC 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 850 nm |
| Average service life | 100,000 h at T a = +25 °C |
| Teach-Turn adjustment | BluePilot For setting the sensing range |
| IO-Link | For configuring the sensor parameters and Smart Task functions |
| LED blue | BluePilot: sensing range indicator |
| LED green | Operating indicator Static on: power on Flashing: IO-Link mode |
| LED yellow | Status of received light beam Static on: object present Static off: object not present |
| MTTF D | 626 years |
| DC avg | 0% |
| T M (mission time) | 20 years |
| Data transmission rate | COM2 (38,4 kBaud) |
| Cycle time | 2.3 ms |
| Process data length | 16 Bit |
| Process data structure | Bit 0 = switching signal Q L1 |
| VendorID | 26 |
| DeviceID HEX | 0x800184 |
| DeviceID DEC | 8388996 |
| Compatible master port type | A |
| SIO mode support | Yes |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | ≤ 5 V pp |
| Usage category | DC-12 (According to EN 60947-5-2) DC-13 (According to EN 60947-5-2) |
| Current consumption | ≤ 30 mA, without load. At U B = 24 V |
| Protection class | III |
| Number | 2 (Complementary) |
| Type | Push-pull: PNP/NPN |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. U B -2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. U B / < 2.5 V |
| Output current I max. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | SIO Logic: 600 µs IOL: 750 µs |
| Repeatability (response time) | 150 µs |
| Switching frequency | SIO Logic: 800 Hz IOL: 650 Hz |
| Function of pin 4/black (BK) | Digital output, light switching, object present → output Q L1 HIGH; IO-Link communication C |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured |
| Function of pin 2/white (WH) | Digital output, dark switching, object present → output Ǭ L1 LOW |
| Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be configured |
| Housing | Plastic, VISTAL® |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Connection | Male connector M12, 4-pin |
| Front screen | Plastic, PMMA |
| Male connector | Plastic, VISTAL® |
| Weight | Approx. 80 g |
| Maximum tightening torque of the fixing screws | 1.3 Nm |
| Enclosure rating | IP66 (EN 60529) IP67 (EN 60529) IP69 (EN 60529) |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Shock resistance | 50 g, 11 ms (25 positive and 25 negative shocks per axis, for X, Y, Z axes, 150 shocks in total (EN60068-2-27)) 50 g, 6 ms (5,000 positive and 5,000 negative shocks per axis, for X, Y, Z axes, 30,000 shocks in total (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6)) |
| Air humidity | 35 % ... 95 %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Resistance to cleaning agent | ECOLAB |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Smart Task name | Base logics |
| Logic function | Direct AND OR Window Hysteresis |
| Timer function | Deactivated Switch-on delay Off delay ON and OFF delay Impulse (one shot) |
| Inverter | Yes |
| Repeatability | SIO Logic: 300 µs IOL: 400 µs |
| Switching signal Q L1 | Switching output |
| Switching signal Ǭ L1 | Switching output |
| Device status | Yes |
| Quality of teach | Yes |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
