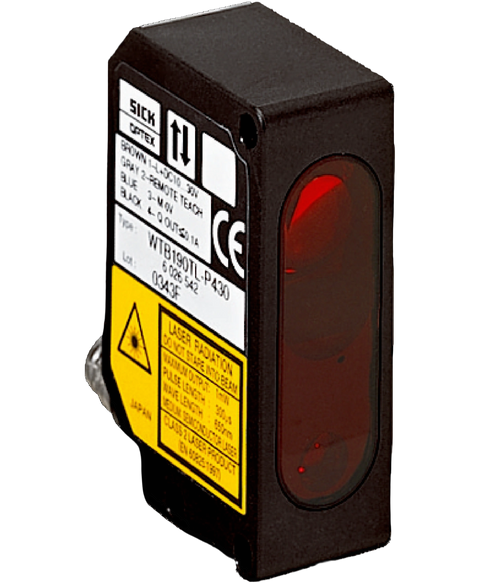

SICK WTB190L-P460
Discontinued by manufacturer, photoelectric proximity sensor, background suppression, with red laser, 100-300mm sensing range, 10-30VDC, pnp light,dark switching, 4-pin m8 connector, 6026554, replaced by gtb6l-f4211
This SICK WTB190L-P460 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805595669.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 15 mm x 44.4 mm x 30 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm ... 300 mm 1) |
| Type of light | Visible red light |
| Light source | Laser |
| Light spot size (distance) | Ø 2.5 mm (200 mm) |
| Laser class | 2 |
| Adjustment | None |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 40 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Output current I max. | ≤ 100 mA |
| Response time | 0.7 ms 4) |
| Switching frequency | 700 Hz 5) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | A 6) D 7) |
| Protection class | III 8) |
| Weight | 120 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Tightening torque, max. | 0.5 Nm |
| Enclosure rating | IP67 |
| Ambient operating temperature | –10 °C ... +40 °C |
| Ambient temperature, storage | –20 °C ... +60 °C |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
