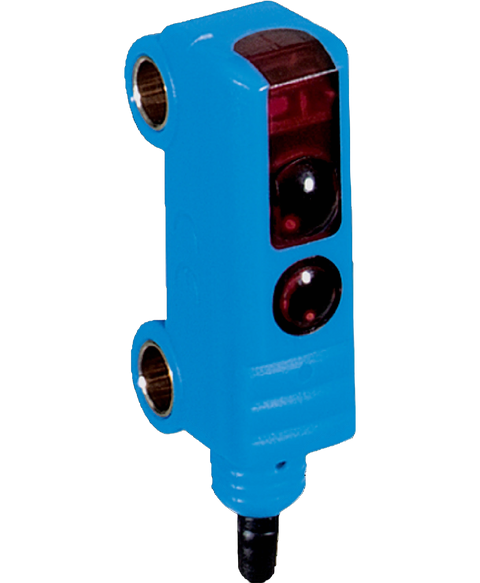

SICK WT2S-P231
Discontinued by manufacturer, miniature proximity sensor, photoelectric, 1-30mm sensing range, background suppression, pnp output, 10-30VDC supply, light switching, 3-pin m8 connector, 200mm cable length, (1022659), (successor: wtb2s-2p3130)
This SICK WT2S-P231 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801450324.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 7.6 mm x 25.1 mm x 12.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm ... 30 mm 1) |
| Sensing range | 1 mm ... 30 mm 1) |
| Focus | 15 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 1.5 mm (15 mm) |
| Wave length | 660 nm |
| Adjustment | None |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current I max. | ≤ 50 mA |
| Response time | 3) |
| Switching frequency | 800 Hz 4) |
| Connection type | Cable with connector M8, 3-pin, 200 mm 5) |
| Cable material | Plastic, PVC |
| Cable diameter | Ø 2.4 mm |
| Circuit protection | A 6) C 7) D 8) |
| Weight | 20 g |
| Reverse polarity protection | ✔ |
| Short-circuit protection | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 IP69K |
| Ambient operating temperature | –20 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| MTTF D | 1,495 years |
| DC avg | 0 % |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | In Phase Out |
