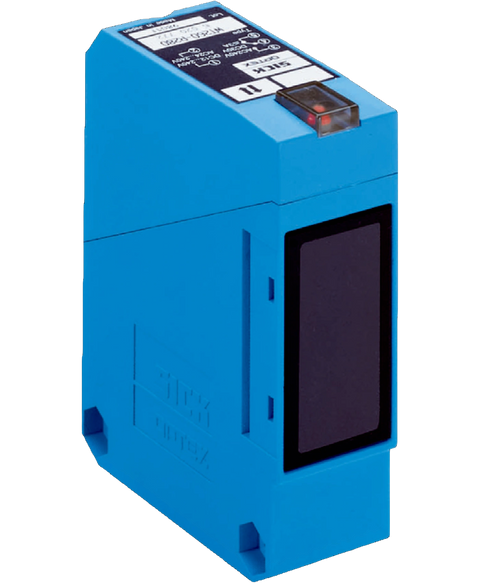

SICK WT260-R270
Compact photoelectric sensor, proximity, energetic, 5-1700mm sensing range, led visible red light, light switching changeover contacts, 12-240VDC , 24-240VAC, cable gland, 6020770
This SICK WT260-R270 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801474376.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 25 mm x 78 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm ... 1,700 mm 1) |
| Sensing range | 5 mm ... 1,300 mm |
| Focus | Approx. 1.8° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 60 mm (1,300 mm) |
| Angle of dispersion | Approx. 1.8° |
| Adjustment | Potentiometer, 270° |
| Supply voltage | 12 V DC ... 240 V DC 1) 24 V AC ... 240 V AC 1) |
| Power consumption | ≤ 5 VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light switching 2) |
| Switching current (switching voltage) | 3 A (240 V AC) 3 A (30 V DC) |
| Response time | ≤ 20 ms |
| Switching frequency | 25 Hz 3) |
| Time functions | On delay Off delay |
| Delay time | Adjustable via time delay selector switch, 0.1 s ... 10 s Adjustable via time control |
| Connection type | Cable gland |
| Circuit protection | A 4) C 5) |
| Protection class | II 6) |
| Weight | 120 g |
| Interference emission | Level EN 61000-6-3 Residential and commercial areas |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Items supplied | Mounting bracket BEF-W260 |
| Electromagnetic compatibility (EMC) | Level EN 61000-6-3 Residential and commercial areas |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | EN50081-1, 242356 |
| MTTF D | 613 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
