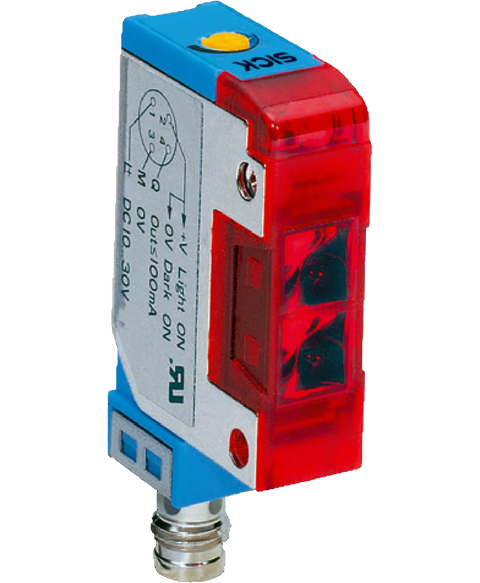

SICK WT170-P430
Discontinued by manufacturer, photoelectric proximity sensor, background suppression, with red led, 10-550mm sensing range, 10-30VDC, pnp light,dark switching, 4 pin m8 connector, 6010198
This SICK WT170-P430 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805614119.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 12 mm x 37 mm x 28.6 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 10 mm ... 550 mm 1) |
| Sensing range | 10 mm ... 400 mm 1) |
| Type of light | Visible red light |
| Light source | LED |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Response time | ≤ 0.7 ms 2) |
| Connection type | Male connector M8, 4-pin |
| Housing material | Stainless steel, Stainless steel/ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 1,273 years |
| DC avg | 0 % |
| eCl@ss 5.0 | 27270904 |
| eCl@ss 5.1.4 | 27270904 |
| eCl@ss 6.0 | 27270904 |
| eCl@ss 6.2 | 27270904 |
| eCl@ss 7.0 | 27270904 |
| eCl@ss 8.0 | 27270904 |
| eCl@ss 8.1 | 27270904 |
| eCl@ss 9.0 | 27270904 |
| eCl@ss 10.0 | 27270904 |
| eCl@ss 11.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
