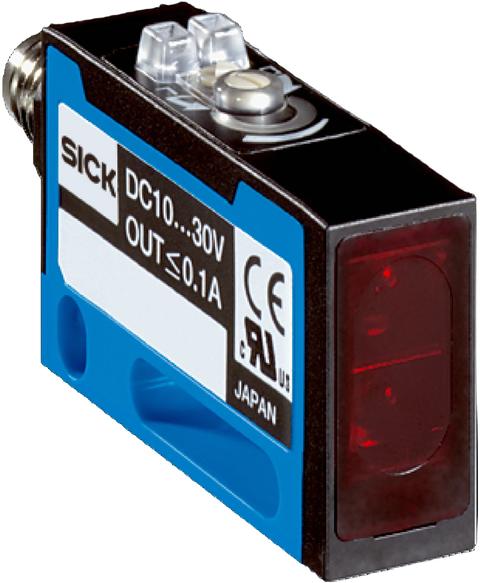

SICK WT160-F172
Discontinued by manufacturer, photoelectric proximity sensor, background suppression, energetic, with red led, 0-1000mm sensing range, 10-30VDC, pnp light,dark switching, 2 m cable, 6022815
This SICK WT160-F172 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805621948.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 11 mm x 23 mm x 38 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm ... 1,000 mm 1) |
| Sensing range | 0 mm ... 800 mm 1) |
| Type of light | Visible red light |
| Light source | LED |
| Wave length | 680 nm |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 25 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Response time | ≤ 0.5 ms 2) |
| Connection type | Cable, 2 m 3) |
| Cable material | PVC |
| Conductor cross section | 0.2 mm² |
| Housing material | Plastic, PBT |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| eCl@ss 5.0 | 27270903 |
| eCl@ss 5.1.4 | 27270903 |
| eCl@ss 6.0 | 27270903 |
| eCl@ss 6.2 | 27270903 |
| eCl@ss 7.0 | 27270903 |
| eCl@ss 8.0 | 27270903 |
| eCl@ss 8.1 | 27270903 |
| eCl@ss 9.0 | 27270903 |
| eCl@ss 10.0 | 27270904 |
| eCl@ss 11.0 | 27270904 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
