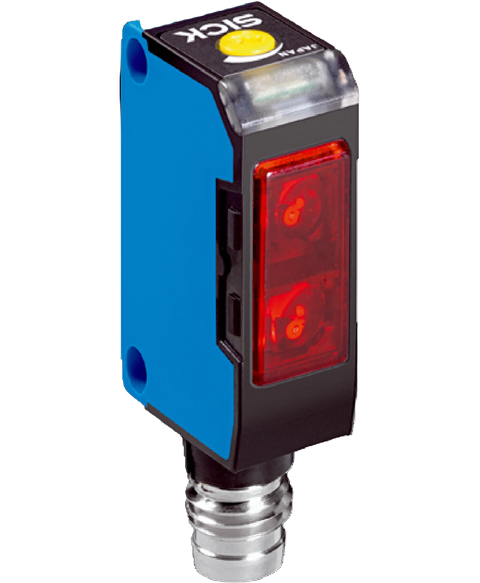

SICK WT150-P460
Photoelectric proximity sensor, background suppression, miniature, 2-100mm sensing range, led visible red light, pnp light,dark switching, 10-30VDC, 4 pin m8 male connector, (6011050)
This SICK WT150-P460 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805463864.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 10 mm x 28 mm x 18 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 2 mm ... 100 mm 1) |
| Focus | Approx. 5° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Angle of dispersion | Approx. 5° |
| Adjustment | Potentiometer, 5 turns |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Male connector M8, 4-pin |
| Circuit protection | A 6) B 7) C 8) D 9) |
| Protection class | II |
| Weight | 7 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Items supplied | BEF-W150-A mounting bracket |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 1,686 years |
| DC avg | 0 % |
| ECLASS 5.0 | 27270903 |
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| Phase Status | Phased Out |
