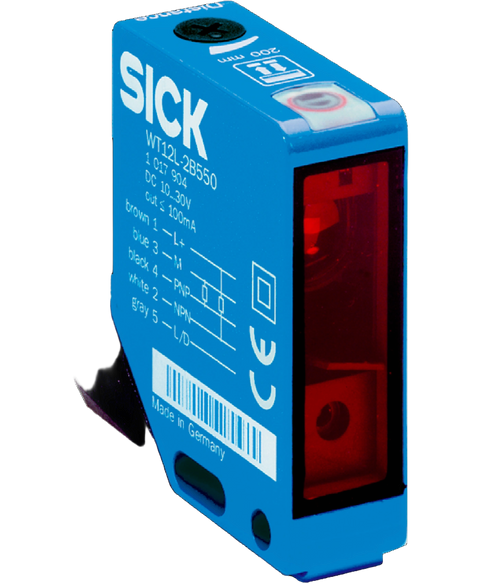

SICK WT12L-2B551
Detection sensors, photoelectric sensors | w12
This SICK WT12L-2B551 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805616791.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression |
| Sensing range max. | 30 mm ... 200 mm |
| Light source | Laser |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 0.2 mm (100 mm) |
| Focus position | 100 mm |
| Laser class | 1 |
| Wave length | 650 nm |
| Adjustment | Potentiometer |
| Special applications | Detecting small objects, Detection of objects moving at high speeds |
| Items supplied | 2 x clamps BEF-KH-W12, incl. screws |
| MTTF D | 284 years |
| DC avg | 0 % |
| T M (mission time) | 10 years |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 55 mA |
| Protection class | III |
| Type | PNP |
| Switching mode | Light switching, Dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage PNP HIGH/LOW | Uv - < 2 V, Uv / 0 V, <= 1.5 V |
| Signal voltage NPN HIGH/LOW | Uv - < 2 V, Uv / 0 V, <= 1.5 V |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz |
| Circuit protection | A C D |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15 mm x 49 mm x 41.5 mm |
| Connection | Plug, M12, 5-pin |
| Front screen | Plastic, PMMA |
| Weight | 130 g |
| Enclosure rating | IP67 IP69K |
| Ambient operating temperature | –10 °C ... +50 °C |
| Ambient temperature, storage | –25 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
| ECLASS 5.0 | 27270904 |
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
