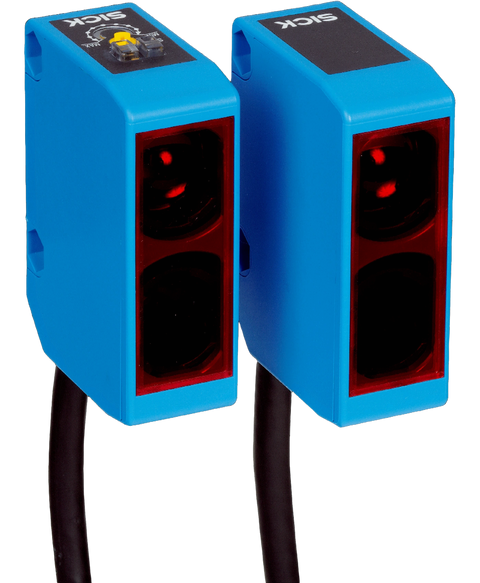

SICK WSE250-2R1531
(6044707) through-beam pe, ac, spdt, red, cable, 2m, bracket included,wse250-2r1531, wse250-2r1531 throug
This SICK WSE250-2R1531 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805754114.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Through-beam photoelectric sensor |
| Dimensions (W x H x D) | 20 mm x 60 mm x 43.9 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 50 m |
| Sensing range | 0 m ... 40 m |
| Focus | Approx. 2° |
| Type of light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 0.6 m (20 m) |
| Angle of dispersion | Approx. 2° |
| Adjustment | Potentiometer, 2 turns |
| Supply voltage U B | 24 V DC ... 240 V DC 24 V AC/DC ... 240 V AC/DC |
| Power consumption, sender | ≤ 3.5 VA |
| Power consumption, receiver | ≤ 3.5 VA |
| Switching output | Relay, electrically isolated |
| Output function | Change-over contacts |
| Switching mode | Light switching |
| Switching current (switching voltage) | 3 A (240 V AC) 3 A (30 V DC) |
| Response time | ≤ 15 ms |
| Switching frequency | 33 Hz |
| Angle of reception | 20° |
| Connection type | Cable, 5-wire, 2 m |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.76 mm² |
| Cable diameter | Ø 6.4 mm |
| Circuit protection | A C |
| Protection class | II |
| Overvoltage category | 2 |
| Weight | 310 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | BEF-W250 mounting bracket |
| Usage category | AC-15, DC-13 According to EN 60947-1 |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH2.E300503 & NRKH8.E300503 |
| MTTF D | 445 years |
| DC avg | 0 % |
| B 10D | 68,000 Switching cycles |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| CCC certificate | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270901 |
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
