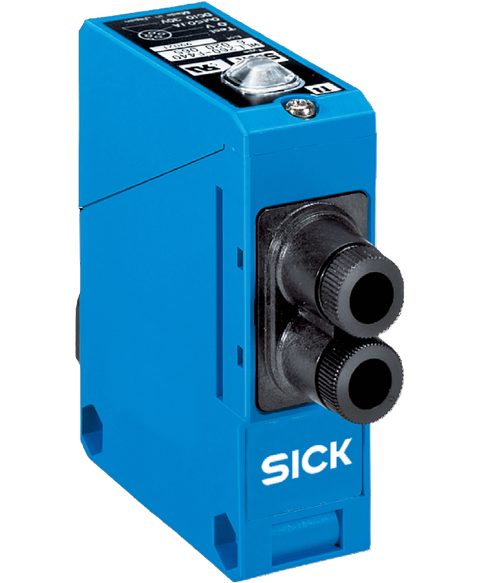

SICK WLL260-F240
Discontinued by manufacturer, fiber-optic sensor, 10-30VDC, 35mA, red led, 700Hz, light,dark switching, IP66, pnp switching output
This SICK WLL260-F240 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805610510.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device type | Fiber-optic amplifier |
| Device type detail | Stand-alone |
| Dimensions (W x H x D) | 25 mm x 77.8 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm ... 65 mm (Proximity system) 1) 2) 0 mm ... 110 mm (Proximity system) 1) 3) 0 mm ... 800 mm (Through-beam system) 2) |
| Sensing range | 0 mm ... 50 mm, Proximity system 2) 0 mm ... 90 mm, Proximity system 3) 0 mm ... 700 mm, Through-beam system 2) |
| Type of light | Visible red light |
| Light source | LED 4) |
| Adjustment | Potentiometer, 270° |
| Indication | LED |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | ≤ 5 V pp 2) |
| Current consumption | 35 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Response time | ≤ 0.7 ms 4) |
| Switching frequency | 700 Hz 5) |
| Connection type | Cable gland |
| Circuit protection | A 6) B 7) C 8) D 9) |
| Protection class | II 10) |
| Weight | 120 g |
| Housing material | Plastic, ABS |
| Enclosure rating | IP66 |
| Items supplied | Mounting bracket BEF-W260 |
| Test input sender off | TE to V S |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 850 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270905 |
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | In Phase Out |
