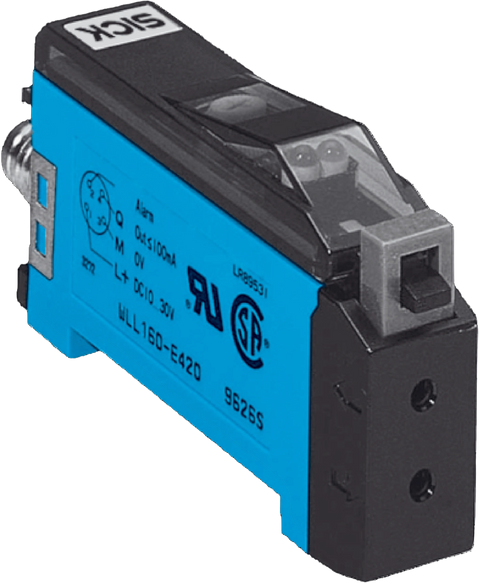

SICK WLL160-F420
Discontinued by manufacturer, photoelectric sensor, fiber optic, with red led, 0-2000mm sensing range, 10-30VDC, pnp light,dark switching, 4 pin m8 connector, 6009990
This SICK WLL160-F420 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801447188.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Dimensions (W x H x D) | 12 mm x 38.5 mm x 59 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 mm ... 2,000 mm 1) |
| Sensing range | 0 mm ... 400 mm 1) |
| Type of light | Visible red light |
| Light source | LED |
| Wave length | 660 nm |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 1) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Response time | ≤ 0.35 ms 2) |
| Connection type | Male connector M8, 4-pin |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| eCl@ss 5.0 | 27270905 |
| eCl@ss 5.1.4 | 27270905 |
| eCl@ss 6.0 | 27270905 |
| eCl@ss 6.2 | 27270905 |
| eCl@ss 7.0 | 27270905 |
| eCl@ss 8.0 | 27270905 |
| eCl@ss 8.1 | 27270905 |
| eCl@ss 9.0 | 27270905 |
| eCl@ss 10.0 | 27270905 |
| eCl@ss 11.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
