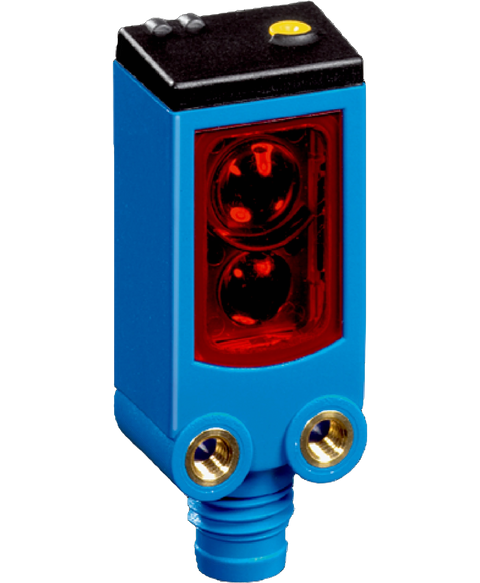

SICK WLG4-3F2132
Discontinued by manufacturer, photoelectric sensor, retro reflective, 10-30VDC, 20mA, pnp, 0.01-4.5 meter sensing distance, pin point led, visible red light, detects transparent objects, IP67, IP66
This SICK WLG4-3F2132 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805621882.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Sensing range max. | 0.01 m ... 4.5 m 1) |
| Sensing range | 0.02 m ... 3.5 m 1) |
| Polarisation filter | Yes |
| Light source | PinPoint LED 2) |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 75 mm (1.5 m) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Detecting transparent objects |
| AutoAdapt | ✔ |
| Supply voltage U B | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 20 mA 3) |
| Protection class | III |
| Type | PNP |
| Switching mode | Dark switching |
| Output current I max. | ≤ 100 mA |
| Response time | 4) |
| Switching frequency | 1,000 Hz 5) |
| Attenuation along light beam | > 8 % |
| Circuit protection | A 6) C 7) D 8) |
| Housing | Rectangular | Plastic, ABS |
| Design detail | Flat |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Connection | Connector M8, 3-pin |
| Front screen | Plastic, PMMA |
| Weight | 30 g |
| Enclosure rating | IP67 IP66 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
