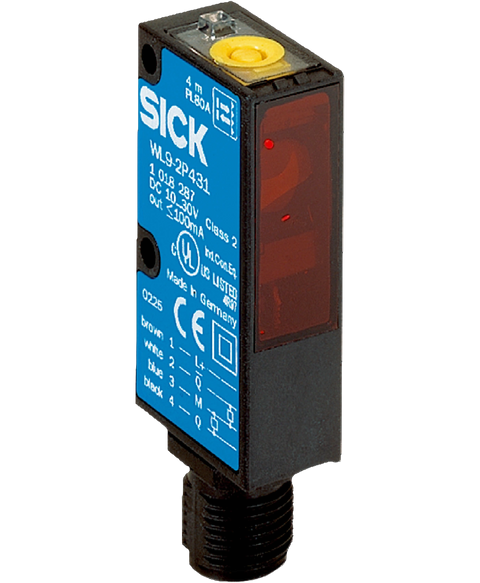

SICK WL9-2N131
Discontinued by manufacturer, photoelectric sensor, polarized, red, npn, 0...4 m range pl 80A, teach-in, 2m cable, alternative: wl9-3n1132
This SICK WL9-2N131 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805595510.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 12 mm x 40 mm x 22 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 4 m 1) |
| Sensing range | 0 m ... 3 m 1) |
| Type of light | Visible red light |
| Light source | LED |
| Adjustment | Single teach-in button (Sensitivity) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 30 mA 1) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Response time | ≤ 625 µs 2) |
| Connection type | Cable, 2 m 3) |
| Conductor cross section | 0.14 mm² |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP69K |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| eCl@ss 5.0 | 27270902 |
| eCl@ss 5.1.4 | 27270902 |
| eCl@ss 6.0 | 27270902 |
| eCl@ss 6.2 | 27270902 |
| eCl@ss 7.0 | 27270902 |
| eCl@ss 8.0 | 27270902 |
| eCl@ss 8.1 | 27270902 |
| eCl@ss 9.0 | 27270902 |
| eCl@ss 10.0 | 27270902 |
| eCl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
