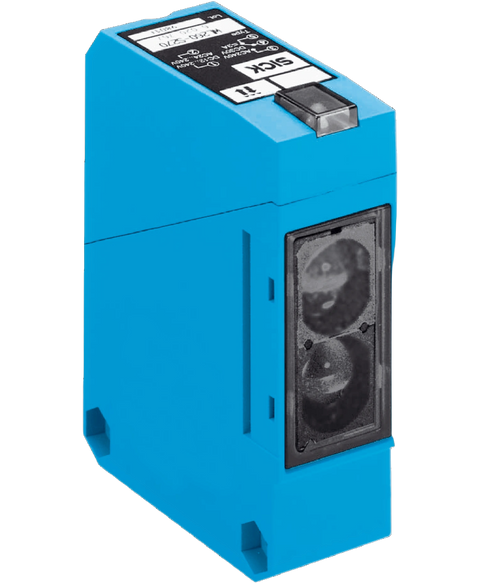

SICK WL260-S270
Discontinued by manufacturer, photoelectric sensor, retro-reflective, polarized, ac, spdt, red, term. chamber, successor for fr4-12b
This SICK WL260-S270 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805675910.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 25 mm x 78 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 15 m 1) |
| Sensing range | 0.01 m ... 10 m 2) 0.01 m ... 13 m 1) |
| Focus | Approx. 1.7° |
| Type of light | Visible red light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 300 mm (10 m) |
| Angle of dispersion | Approx. 1.7° |
| Adjustment | Potentiometer, 270° |
| Supply voltage | 12 V DC ... 240 V DC 1) 24 V AC ... 240 V AC 1) |
| Power consumption | ≤ 5 VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light switching 2) |
| Switching current (switching voltage) | 3 A (240 V AC) 3 A (30 V DC) |
| Response time | ≤ 20 ms |
| Switching frequency | 25 Hz 3) |
| Connection type | Cable gland |
| Circuit protection | A 4) C 5) |
| Protection class | II 6) |
| Weight | 120 g |
| Polarisation filter | ✔ |
| Interference emission | Level EN 61000-6-3 Residential and commercial areas |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Reflector P250, mounting bracket BEF-W260 |
| Electromagnetic compatibility (EMC) | Level EN 61000-6-3 Residential and commercial areas |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | EN50081-1, 242356 |
| MTTF D | 588 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
