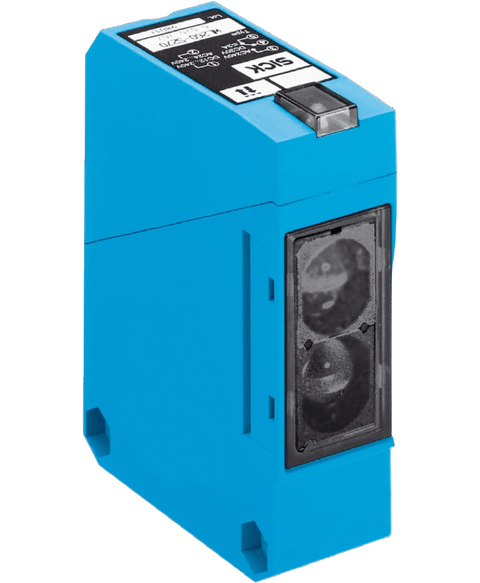

SICK WL260-F470
Discontinued by manufacturer, photoelectric sensor, retro-reflective, 35mA, 10-30VDC, 100mA output, 0.01-14 meter sensing range, pnp type, dual lens, 1.5 ms, 333Hz, male m12 4 pin connector, -25 to 55 degree c, IP67, (6020977), successor: wl280-2p2431
This SICK WL260-F470 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805596247.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Dimensions (W x H x D) | 25 mm x 78 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 14 m 1) |
| Sensing range | 0.01 m ... 9.5 m 2) 0.01 m ... 11.5 m 1) |
| Focus | Approx. 1.7° |
| Type of light | Visible red light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 240 mm (8 m) |
| Angle of dispersion | Approx. 1.7° |
| Adjustment | Potentiometer, 270° |
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | pp 2) |
| Current consumption | 35 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 1.5 ms 4) |
| Switching frequency | 333 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 6) B 7) C 8) D 9) |
| Protection class | II 10) |
| Weight | 120 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Reflector P250, mounting bracket BEF-W260 |
| Test input sender off | TE to V S |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| MTTF D | 908 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
| Phase Status | Phased Out |
