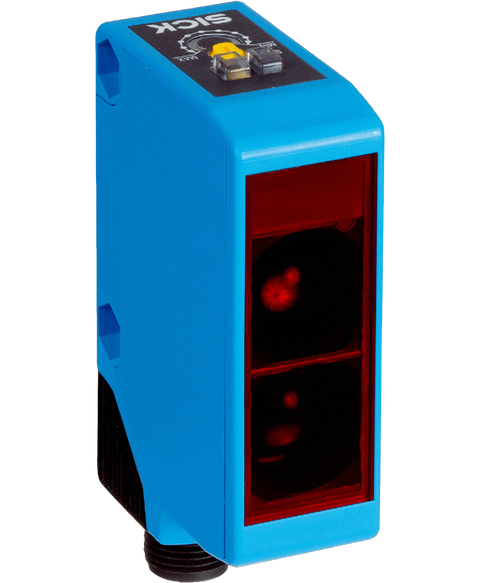

SICK WL250-2P2431
Photoelectric sensor, retro-reflective, dual lens, 0.01-15 meter sensing range, pnp light,dark switching, 10-30VDC, 1000Hz switching, connector : 4 pin male m12, IP67, (6044699)
This SICK WL250-2P2431 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26801447696.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Dimensions (W x H x D) | 20 mm x 65 mm x 43.9 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m ... 15 m 0.01 m ... 12 m |
| Sensing range | 0.01 m ... 13 m 0.01 m ... 11 m |
| Focus | Approx. 2° |
| Type of light | Visible red light |
| Light source | LED |
| Light spot size (distance) | Ø 260 mm (8 m) |
| Angle of dispersion | Approx. 2° |
| Adjustment | Potentiometer, 2 turns |
| Supply voltage U B | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 20 mA |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via L/D control cable |
| Output current I max. | ≤ 100 mA |
| Response time | ≤ 0.5 ms |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A B C D |
| Protection class | III |
| Weight | 40 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Reflector P250, BEF-W250 mounting bracket |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH2.E300503 & NRKH8.E300503 |
| MTTF D | 1,832 years |
| DC avg | 0 % |
| EU declaration of conformity | ✔ |
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
| ECLASS 5.0 | 27270902 |
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
