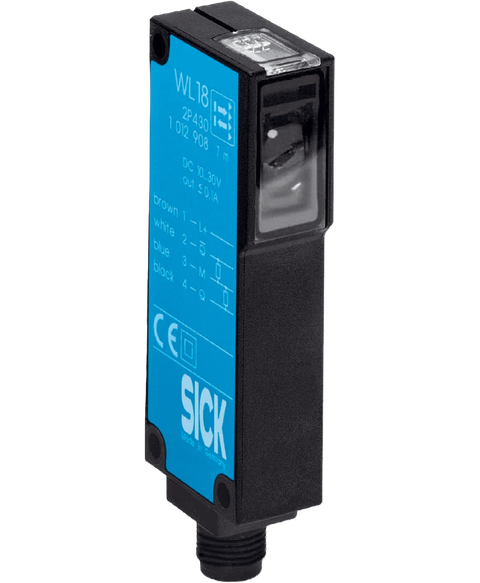

SICK WL18-2N430
Discontinued by manufacturer, photoelectric sensor, retro-reflective, visible red light, 10-30VDC, 0-7 m sensing range
This SICK WL18-2N430 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors range and is referenced internally as PartLogic SKU PL26805613088.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Functional principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 17 mm x 75 mm x 32.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 7 m 1) |
| Sensing range | 0 m ... 5 m 1) |
| Type of light | Visible red light |
| Light source | LED |
| Adjustment | Potentiometer |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | pp |
| Current consumption | 25 mA 1) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Response time | 2) |
| Connection type | Male connector M12, 4-pin |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP65 |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Phase Status | Phased Out |
